The VIRTUAL SERVERS panel displays information for
each currently defined virtual server. Each table entry shows the status
of the virtual server, the server name, the virtual IP assigned to the
server, the netmask of the virtual IP, the port number to which the
service communicates, the protocol used, and the virtual device
interface.

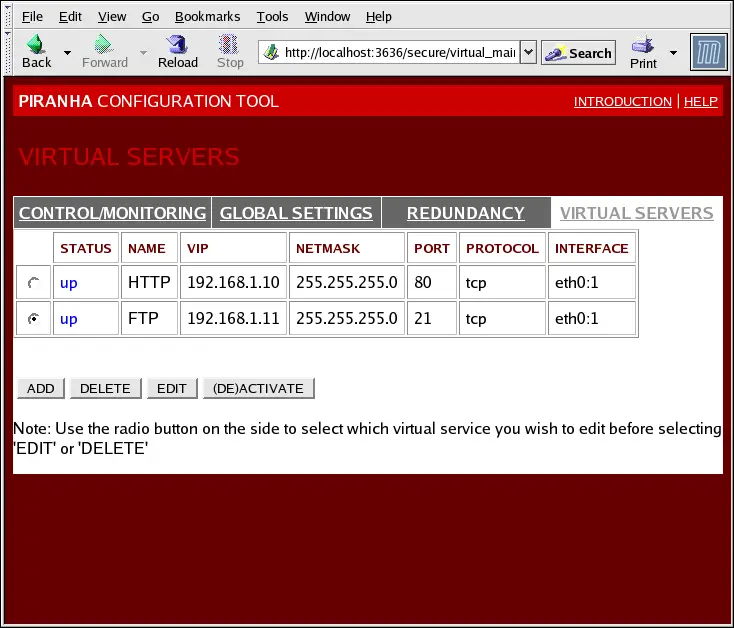

Figure 10-5. The VIRTUAL SERVERS Panel
Each server displayed in the VIRTUAL SERVERS panel
can be configured on subsequent screens or
subsections.
To add a service, click the ADD button. To remove
a service, select it by clicking the radio button next to the virtual
server and click the DELETE button.
To enable or disable a virtual server in the table click its radio button
and click the (DE)ACTIVATE button.
After adding a virtual server, you can configure it by clicking
the radio button to its left and clicking the EDIT
button to display the VIRTUAL SERVER
subsection.
The VIRTUAL SERVER subsection panel shown in
Figure 10-6 allows you to configure an
individual virtual server. Links to subsections related specifically
to this virtual server are located along the top of the page. But
before configuring any of the subsections related to this virtual
server, complete this page and click on the
ACCEPT button.

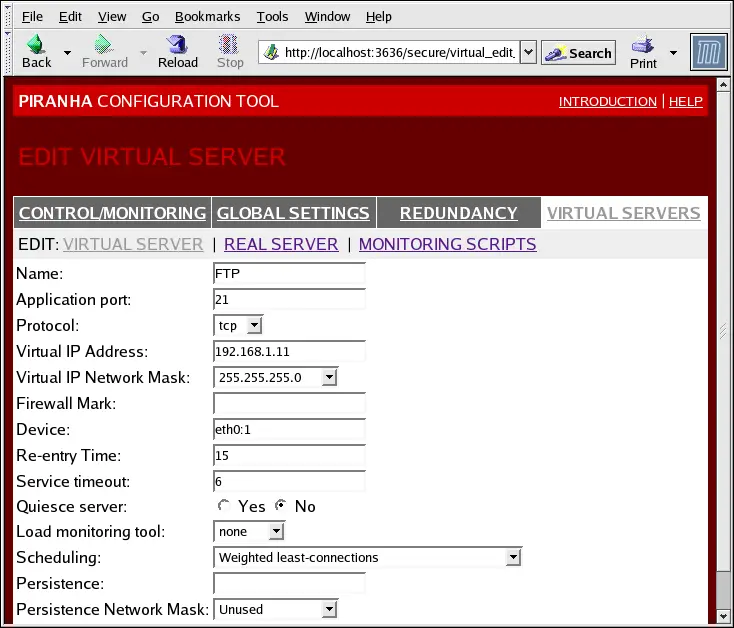

Figure 10-6. The VIRTUAL SERVERS Subsection
Name
Enter a descriptive name to identify the virtual server.
This name is not the hostname for the
machine, so make it descriptive and easily identifiable. You can
even reference the protocol used by the virtual server, such as
HTTP.
Application port
Enter the port number through which the service application
will listen. Since this example is for HTTP services, port 80 is
used.
Protocol
Choose between UDP and TCP in the drop-down menu. Web
servers typically communicate via the TCP protocol, so this is
selected in the example above.
Virtual IP Address
Enter the virtual server's floating IP address in this text
field.
Virtual IP Network Mask
Set the netmask for this virtual server with the drop-down
menu.
Firewall Mark
Do not enter a firewall mark integer
value in this field unless you are bundling multi-port
protocols or creating a multi-port virtual server for
separate, but related protocols. In this example, the above
virtual server has a Firewall Mark of 80
because we are bundling connections to HTTP on port 80 and to
HTTPS on port 443 using the firewall mark value of 80. When
combined with persistence, this technique will ensure users
accessing both insecure and secure webpages are routed to
the same real server, preserving state.
Warning
Entering a firewall mark in this
field allows IPVS to recognize that packets bearing this
firewall mark are treated the same, but you must perform further
configuration outside of the
Piranha Configuration Tool to actually assign the
firewall marks. See Section 9.3 Multi-port Services and LVS Clustering for
instructions on creating multi-port services and Section 9.4 FTP In an LVS Cluster for creating a highly available FTP
virtual server.
Device
Enter the name of the network device to which you want the
floating IP address defined the Virtual IP
Address field to bind.
You should alias the public floating IP
address to the Ethernet interface connected to the public
network. In this example, the public network is on the
eth0 interface, so
eth0:1 should be entered as the device
name.
Re-entry Time
Enter an integer value which defines the length of time, in
seconds, before the active LVS router attempts to bring a real server back
into the cluster after a failure.
Service Timeout
Enter an integer value which defines the length of time, in
seconds, before a real server is considered dead and removed
from the cluster.
Quiesce server
When the Quiesce server radio button is
selected, anytime a new real server node comes online, the
least-connections table is reset to zero so the active LVS
router routes requests as if all the real servers were freshly
added to the cluster. This option prevents the a new server from
becoming bogged down with a high number of connections upon
entering the cluster.
Load monitoring tool
The LVS router can monitor the load on the various real
servers by using either rup or
ruptime. If you select rup
from the drop-down menu, each real server must run the
rstatd service. If you select
ruptime, each real server must run the
rwhod service.
Caution
Load monitoring is
not the same as load balancing and can
result in hard to predict scheduling behavior when combined
with weighted scheduling algorithms. Also, if you use load
monitoring, the real servers in the cluster must be Linux
machines.
Scheduling
Select your preferred scheduling algorithm from the
drop-down menu. The default is Weighted
least-connection. For more information on scheduling
algorithms, see Section 7.3.1 Scheduling Algorithms.
Persistence
If an administrator needs persistent connections to the
virtual server during client transactions, enter the number of
seconds of inactivity allowed to lapse before a connection times
out in this text field.
Important
If you entered a value in the Firewall
Mark field above, you should enter a value for
persistence as well. Also, be sure that if you use firewall
marks and persistence together, that the amount of
persistence is the same for each virtual server with the
firewall mark. For more on persistence and firewall marks,
refer to Section 7.5 Persistence and Firewall Marks.
Persistence Network Mask
To limit persistence to particular subnet, select the
appropriate network mask from the drop-down menu.
Note
Before the advent of firewall marks,
persistence limited by subnet was a crude way of bundling
connections. Now, it is best to use persistence in relation to
firewall marks to achieve the same result.
Warning
Remember to click the ACCEPT button after
making any changes in this panel. To make sure you do not lose
changes when selecting a new panel.
Clicking on the REAL SERVER subsection link at
the top of the panel displays the EDIT REAL
SERVER subsection. It displays the status of the physical
server hosts for a particular virtual service.

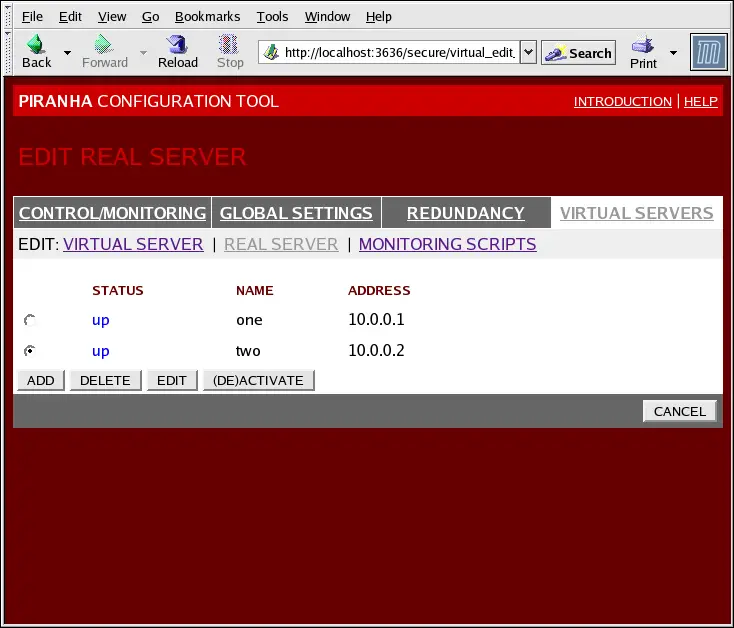

Figure 10-7. The REAL SERVER Subsection
Click the ADD button to add a new server. To
delete an existing server, select the radio button beside it and click
the DELETE button. Click the
EDIT button to load the EDIT REAL
SERVER panel, as seen in Figure 10-8.

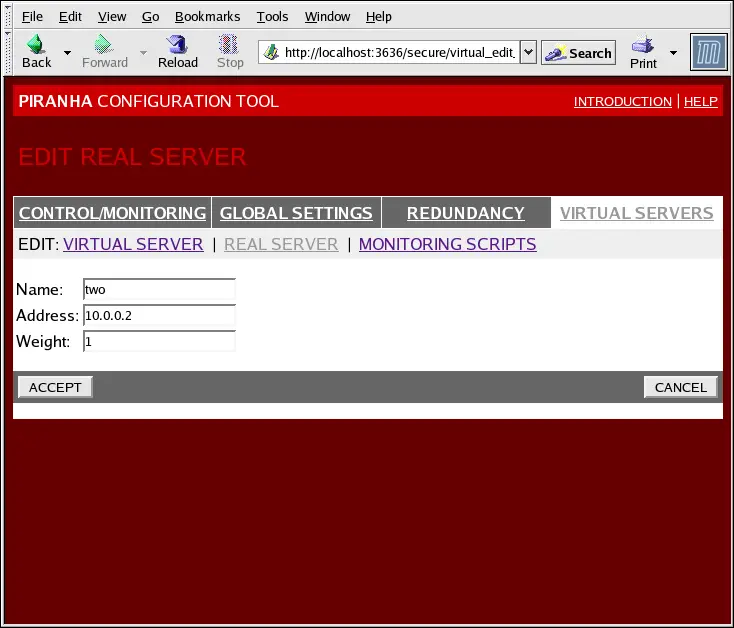

Figure 10-8. The REAL SERVER Configuration Panel
This panel consists of three entry fields:
Name
A descriptive name for the real server.
Tip
This name is not the
hostname for the machine, so make it descriptive and easily
identifiable.
Address
The real server's IP address. Since the listening port is
already specified for the associated virtual server, do not add
a port number.
Weight
An integer value indicating this host's capacity relative to
that of other hosts in the pool. The value can be arbitrary, but
treat it as a ratio in relation to other real servers in the
cluster. For more on server weight, see Section 7.3.2 Server Weight and Scheduling.
Warning
Remember to click the ACCEPT button after
making any changes in this panel. To make sure you do not lose any
changes when selecting a new panel.
Click on the MONITORING SCRIPTS link at the top
of the page. The EDIT MONITORING SCRIPTS
subsection allows the administrator to specify a send/expect string
sequence to verify that the service for the virtual server is
functional on each real server. It is also the place where the
administrator can specify customized scripts to check services
requiring dynamically changing data.

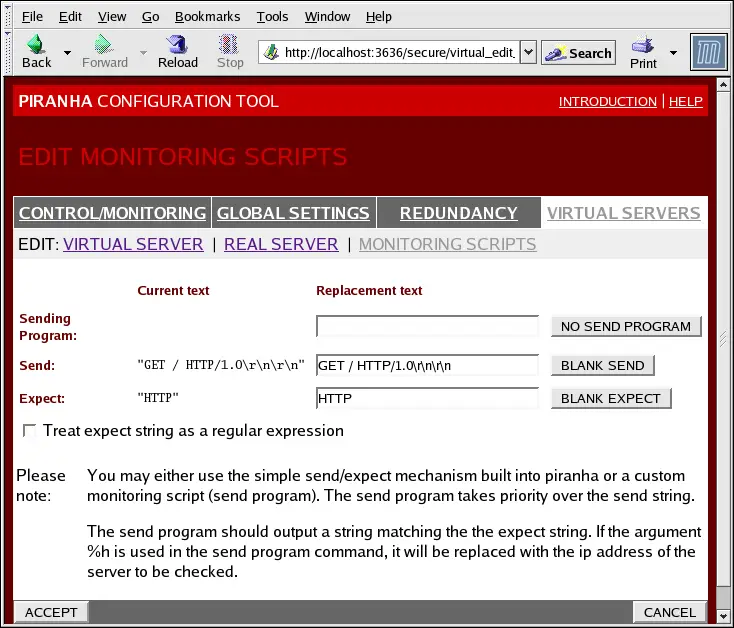

Figure 10-9. The EDIT MONITORING SCRIPTS Subsection
Sending Program
For more advanced service verification, you can use this
field to specify the path to a service-checking script. This
functionality is especially helpful for services that require
dynamically changing data, such as HTTPS or SSL.
To use this functionality, you must write a script that
returns a textual response, set it to be executable, and type
the path to it in the Sending Program field.
Tip
To ensure that each server in the real
server pool is checked, use the special token
%h after the path to the script in
the Sending Program field. This
token is replaced with each real server's IP address as the
script is called by the nanny daemon.
The following is a sample script to use as a guide when
composing an external service-checking script:
#!/bin/sh
TEST=`dig -t soa example.com @$1 | grep -c dns.example.com
if [ $TEST != "1" ]; then
echo "OK
else
echo "FAIL"
fi
Note
If an external program is entered in
the Sending Program field, then the
Send field is ignored.
Send
Enter a string for the nanny daemon to
send to each real server in this field. By default the send
field is completed for HTTP. You can alter this value depending on
your needs. If you leave this field blank, the
nanny daemon attempts to open the
port and assume the service is running if it succeeds.
Only one send sequence is allowed in this field, and it can only
contain printable, ASCII characters as well as the following
escape characters:
\n for new line.
\r for carriage return.
\t for tab.
\ to escape the next character which follows it.
Expect
Enter a the textual response the server should return if it
is functioning properly. If you wrote your own sending program,
enter the response you told it to send if it was successful.
Tip
To determine what to send for a given
service, you can open a telnet connection to
the port on a real server and see what is returned. For
instance, FTP reports 220 upon connecting, so could enter
quit in the Send
field and 220 in the
Expect field.
Warning
Remember to click the ACCEPT button after
making any changes in this panel. To make sure you do not lose any
changes when selecting a new panel.
Once you have configured virtual servers using the
Piranha Configuration Tool, you must copy specific
configuration files to the backup LVS router. See Section 10.7 Synchronizing Configuration Files for
details.
