IPsec stands for Internet Protocol
Security. It is a Virtual Private Network (VPN) solution in which
an encrypted connection is established between two systems
(host-to-host) or two networks
(network-to-network).
A host-to-host IPsec connection is an encrypted connection between two
systems both running IPsec with the same authentication key. With the
IPsec connection active, any network traffic between the two hosts is
encrypted.
To configure a host-to-host IPsec connection, use the following steps
for each host:
Start the Network Administration Tool.
From the IPsec tab, select
New.
Click Forward to start configuring a
host-to-host IPsec connection.
Provide a one word nickname such as
ipsec0 for the connection, and select
whether the connection should be automatically activated when the
computer starts. Click Forward.
Select Host to Host encryption as the
connection type. Click Forward.
Select the type of encryption to use: manual or
automatic.
If manual is selected, an encryption key must be provided
later in the process. If automatic is selected, the
racoon daemon is used to manage the encryption
key. If racoon is used, the
ipsec-tools package must be installed.
Click Forward to continue.
Specify the IP address of the other host.
If you do not know the IP address of the other system, run the
command /sbin/ifconfig
<device> on the other
system, where <device> is the
Ethernet device used to connect to the other host. If only one
Ethernet card exists in the system, the device name is eth0. The
IP address is the number following the inet
addr: label.
Click Forward to continue.
If manual encryption was selected in step 6, specify the encryption key to use
or click Generate to create one.
Specify an authentication key or click
Generate to generate one. It can be any
combination of numbers and letters.
Click Forward to continue.
Verify the information on the IPsec —
Summary page, and click
Apply.
Select File =>
Save to save the configuration.
Select the IPsec connection from the list and click the
Activate button.
Repeat for the other host. It is extremely important that the
same keys from step 8 be used on the
other hosts. Otherwise, IPsec does not work.
After configuring the IPsec connection, it appears in the IPsec list as
shown in Figure 18-19.

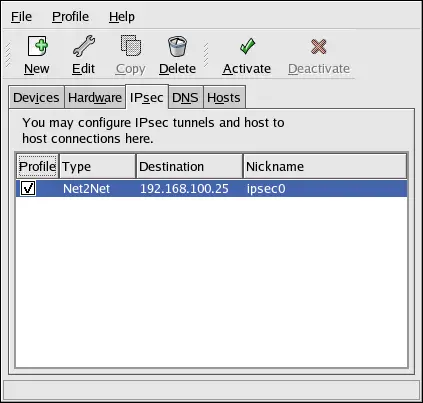

Figure 18-19. IPsec Connection
Two files are created in the
/etc/sysconfig/network-scripts/ directory —
ifcfg-<nickname>
and
keys-<nickname>.
If automatic encryption is selected,
/etc/racoon/racoon.conf is created as well.
When the interface is activated,
<remote-ip>.conf
and psk.txt are created in
/etc/racoon/, and
racoon.conf is modified to include
<remote-ip>.conf.
A network-to-network IPsec connection uses two IPsec routers, one for
each network, through which the network traffic for the private
subnets is routed.
For example, as shown in Figure 18-20, if the
192.168.0/24 private network sends network traffic to the
192.168.2.0/24 private network, the packets go through gateway0, to
ipsec0, through the Internet, to ipsec1, to gateway1, and to the
192.168.2.0/24 subnet.
The IPsec routers must have publicly addressable IP addresses as
well as another Ethernet device connected to its private
network. Traffic only travels through it if it is intended for the
other IPsec router with which it has an encrypted connection.

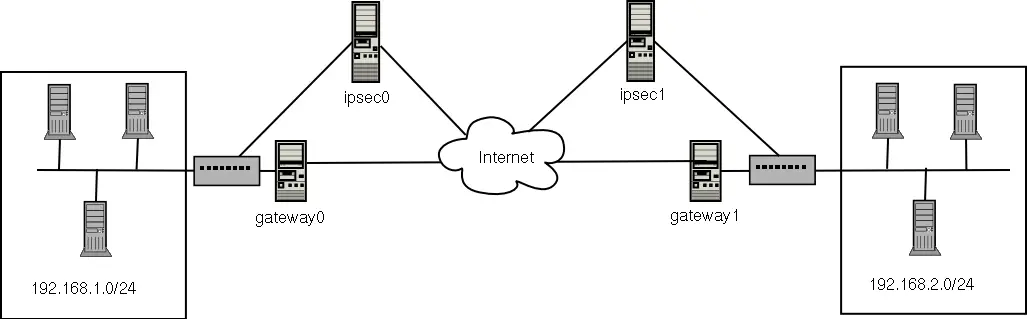

Figure 18-20. Network-to-Network IPsec
Alternate network configurations options include a firewall between
each IP router and the Internet, and an Intranet firewall between each
IPsec router and subnet gateway. The IPsec router and the gateway for
the subnet can be one system with two Ethernet devices, one with a
public IP address that acts as the IPsec router and one with a private
IP address that acts as the gateway for the private subnet. Each IPsec
router can use the gateway for its private network or a public gateway
to send the packets to the other IPsec router.
To configure a network-to-network IPsec connection, use the following
steps:
Start the Network Administration Tool.
From the IPsec tab, select
New.
Click Forward to start configuring a
network-to-network IPsec connection.
Provide a one word nickname, such as
ipsec0, for the connection and select
whether the connection should be automatically activated when the
computer starts. Click Forward.
Select Network to Network encryption
(VPN), and click
Forward.
Select the type of encryption to use: manual or
automatic.
If manual is selected, an encryption key must be provided
later in the process. If automatic is selected, the
racoon daemon is used to manage the encryption
key. If racoon is used, the
ipsec-tools package must be installed. Click
Forward to continue.
On the Local Network page, enter the
following information:
Local Network Address — The IP
address of the device on the IPsec router connected to the
private network.
Local Subnet Mask — The subnet
mask of the local network IP address.
Local Network Gateway — The
gateway for the private subnet.
Click Forward to continue.

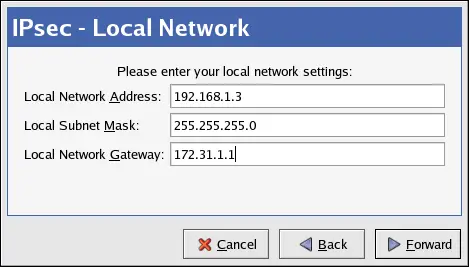

Figure 18-21. Local Network Information
On the Remote Network page, enter the
following information:
Remote IP Address — The
publicly addressable IP address of the IPsec router for the
other private network. In our example, for
ipsec0, enter the publicly addressable IP address of ipsec1,
and vice versa.
Remote Network Address — The
network address of the private subnet behind the
other IPsec router. In our example, enter
192.168.1.0 if configuring ipsec1, and
enter 192.168.2.0 if configuring
ipsec0.
Remote Subnet Mask — The subnet
mask of the remote IP address.
Remote Network Gateway — The IP
address of the gateway for the remote network address.
If manual encryption was selected in step 6, specify the encryption key to use
or click Generate to create one.
Specify an authentication key or click
Generate to generate one. It can be any
combination of numbers and letters.
Click Forward to continue.
Figure 18-22. Remote Network Information
Verify the information on the IPsec —
Summary page, and click
Apply.
Select File =>
Save to save the configuration.
Select the IPsec connection from the list, and click the
Activate button.
As root at a shell prompt, enable IP forwarding:
Edit /etc/sysctl.conf and set
net.ipv4.ip_forward to
1.
Execute the following command to enable the change:
/sbin/sysctl -p /etc/sysctl.conf
The network script to activate the IPsec connection automatically
creates network routes to send packets through the IPsec router if
necessary.
Use the tcpdump utility to view the network packets
being transfered between the hosts (or networks) and verify that they
are encrypted via IPsec. The packet should include an AH header and
should be shown as ESP packets. ESP means it is encrypted. For
example, issue the following command as root:
The tcpdump command outputs live network traffic. A
few seconds after starting tcpdump, manually kill
the process by pressing
[Ctrl]-[C]. You
should see similar ESP packets signifying a working IPsec connection,
as displayed in the previous example.
An advanced IPsec test would require four systems, which would fulfill a full
multi-homed IPsec network, but is not discussed here.
If the IPsec connection was not configured to activate on boot, start
and stop it as root via the command line.
To start the connection, execute the following command as root on each
host for host-to-host IPsec or each IPsec router for
network-to-network IPsec (replace
<ipsec-nick> with the one word
nickname configured earlier, such as
ipsec0):
/sbin/ifup <ipsec-nick>
To stop the connection, execute the following command as root on each
host for host-to-host IPsec or each IPsec router for
network-to-network IPsec (replace
<ipsec-nick> with the one word
nickname configured earlier, such as
ipsec0):
