Section 1.3
The Java Virtual Machine
MACHINE LANGUAGE CONSISTS of very simple
instructions that can be executed directly by the CPU of a computer.
Almost all programs, though, are written in high-level
programming languages such as Java, Pascal, or C++. A program written in a
high-level language cannot be run directly on any computer. First, it
has to be translated into machine language. This translation can be done by
a program called a compiler. A compiler takes
a high-level-language program and translates it into an executable
machine-language program. Once the translation is done, the machine-language
program can be run any number of times, but of course it can only be
run on one type of computer (since each type of computer has its own
individual machine language). If the program is to run on another
type of computer it has to be re-translated, using a different compiler,
into the appropriate machine language.
There is an alternative to compiling a high-level language program.
Instead of using a compiler, which translates the program all at once,
you can use an interpreter, which translates
it instruction-by-instruction, as necessary. An interpreter is a program
that acts much like a CPU, with a kind of fetch-and-execute cycle.
In order to execute a program, the interpreter runs in a loop in which
it repeatedly reads one instruction from the program, decides what is
necessary to carry out that instruction, and then performs the
appropriate machine-language commands to do so.
One use of interpreters is to execute high-level language programs.
For example, the programming language Lisp is usually executed by an
interpreter rather than a compiler. However, interpreters have another
purpose: they can let you use a machine-language program meant for one
type of computer on a completely different type of computer. For example,
there is a program called "Virtual PC" that runs on Macintosh
computers. Virtual PC is an interpreter that executes machine-language
programs written for IBM-PC-clone computers. If you run
Virtual PC on your Macintosh, you can run any PC program,
including programs written for Windows.
(Unfortunately, a PC program will run much more slowly than it would on an
actual IBM clone. The problem is that Virtual PC executes several
Macintosh machine-language instructions for each PC machine-language
instruction in the program it is interpreting. Compiled programs are
inherently faster than interpreted programs.)

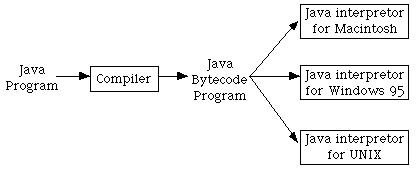

The designers of Java chose to use a combination of compilation and
interpretation. Programs written in Java are compiled into machine language,
but it is a machine language for a computer that doesn't really exist.
This so-called "virtual" computer is known as the Java
virtual machine. The machine language for the Java virtual
machine is called Java bytecode.
There is no reason why Java bytecode could not be used as the machine
language of a real computer, rather than a virtual computer. In fact,
Sun Microsystems -- the originators of Java -- have developed CPU's
that run Java bytecode as their machine language.
However, one of the main selling points of Java is that it can actually
be used on any
computer. All that the computer needs is an interpreter for Java bytecode.
Such an interpreter simulates the Java virtual machine in the same way that
Virtual PC simulates a PC computer.
Of course, a different Jave bytecode
interpreter is needed for each type of computer, but once a computer
has a Java bytecode interpreter, it can run any Java bytecode program.
And the same Java bytecode program can be run on any computer that has
such an interpreter. This is one of the essential features of Java:
the same compiled program can be run on many different types of
computers.
Why, you might wonder, use the intermediate Java bytecode at all?
Why not just distribute the original Java program and let each person
compile it into the machine language of whatever computer they want
to run it on? There are many reasons. First of all, a compiler has
to understand Java, a complex high-level language. The compiler is itself
a complex program. A Java bytecode interpreter, on the other hand,
is a fairly small, simple program. This makes it easy to write
a bytecode interpreter for a new type of computer; once that is done,
that computer can run any compiled Java program. It would be much
harder to write a Java compiler for the same computer.
Furthermore, many Java programs are meant to be downloaded over a network.
This leads to obvious security concerns: you don't want to download
and run a program that will damage your computer or your files.
The bytecode interpreter acts as a buffer between you and the program
you download. You are really running the interpreter, which runs
the downloaded program indirectly. The interpreter can protect you
from potentially dangerous actions on the part of that program.
I should note that there is no necessary connection between
Java and Java bytecode. A program written in Java could certainly
be compiled into the machine language of a real computer. And
programs written in other languages could be compiled into Java
bytecode. However, it is the combination of Java and Java bytecode
that is platform-independent, secure, and network-compatible while
allowing you to program in a modern high-level object-oriented
language.
I should also note that the really hard part of
platform-independence is providing a "Graphical User
Interface" -- with windows, buttons, etc. -- that will
work on all the platforms that support Java. You'll see more
about this problem in Section 6.
