openSUSE 11.1 Reference Guide
Previous Page Home Next Page

27.4 Exporting File Systems with YaST

With YaST, turn a host in your network into an NFS server—a server that exports directories and files to all hosts granted access to it. This could be done to provide applications to all members of a group without installing them locally on each and every host. To install such a server, start YaST and select Network Services > NFS Server. A dialog like the one in NFS Server Configuration Tool opens.

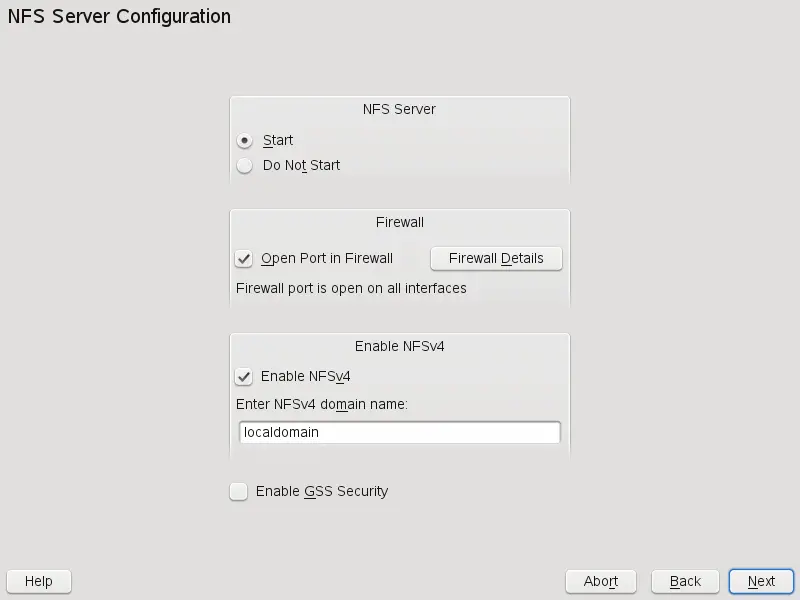

Figure 27-2 NFS Server Configuration Tool

Then activate Start NFS Server and enter the NFSv4 Domain Name.

Click Enable GSS Security if you need secure access to the server. A prerequisite for this is to have Kerberos installed on your domain and both, the server and the clients are kerberized. Click Next.

In the upper text field, enter the directories to export. Below, enter the hosts that should have access to them. This dialog is shown in Configuring an NFS Server with YaST. The figure shows the scenario where NFSv4 is enabled in the previous dialog. Bindmount Targets is shown in the right pane. For more details, refer to the help shown on the left pane. In the lower half of the dialog, there are four options that can be set for each host: single host, netgroups, wildcards, and IP networks. For a more thorough explanation of these options, refer to the exports man page. Click Finish to complete the configuration.

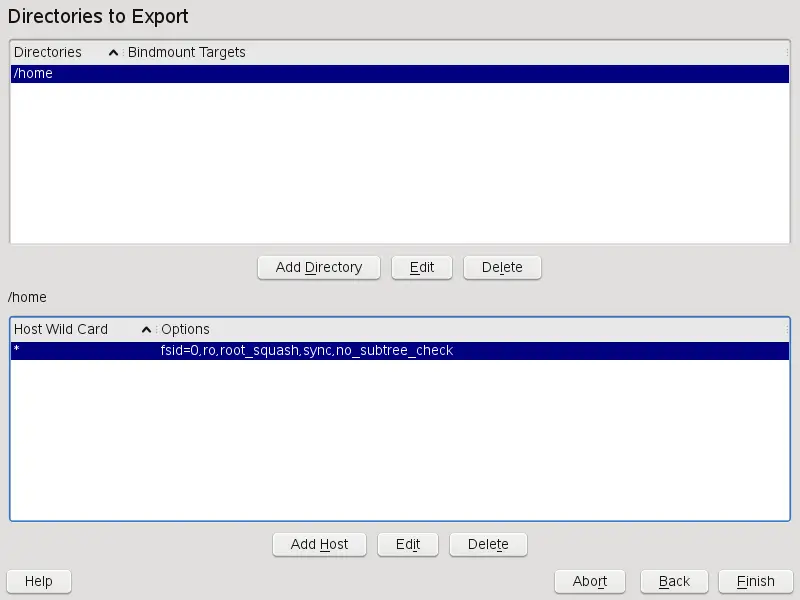

Figure 27-3 Configuring an NFS Server with YaST

IMPORTANT: Automatic Firewall Configuration

If a firewall is active on your system (SuSEfirewall2), YaST adapts its configuration for the NFS server by enabling the nfs service when Open Ports in Firewall is selected.

27.4.1 Exporting for NFSv4 Clients

Activate Enable NFSv4 to support NFSv4 clients. Clients with NFSv3 can still access the server's exported directories if they are exported appropriately. This is explained in detail in Coexisting v3 and v4 Exports.

After activating NFSv4, enter an appropriate domain name. Make sure the name is the same as the one in the /etc/idmapd.conf file of any NFSv4 client that accesses this particular server. This parameter is for the idmapd service that is required for NFSv4 support (on both, server and client). Leave it as localdomain (the default) if you do not have special requirements. For more information, see Section 27.7, For More Information.

Click Next. The dialog that follows has two sections. The upper half consists of two columns named Directories and Bind Mount Targets. Directories is a directly editable column that lists the directories to export.

For a fixed set of clients, there are two types of directories that can be exported—directories that act as pseudo root file systems and those that are bound to some subdirectory of the pseudo file system. This pseudo file system acts as a base point under which all file systems exported for the same client set take their place. For a client or set of clients, only one directory on the server can be configured as pseudo root for export. For this client, export multiple directories by binding them to some existing subdirectory in the pseudo root.

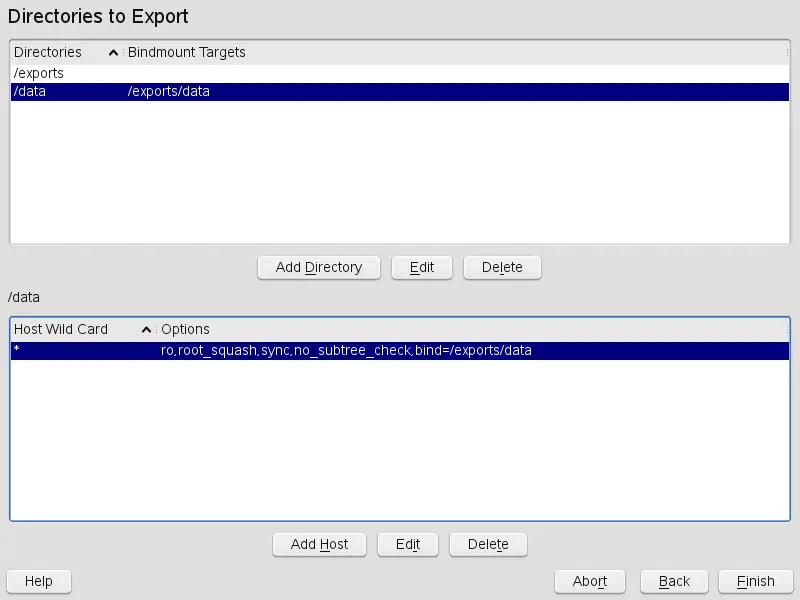

Figure 27-4 Exporting Directories with NFSv4

In the lower half of the dialog, enter the client (wild card) and export options for a particular directory. After adding a directory in the upper half, another dialog for entering the client and option information pops up automatically. After that, to add a new client (client set), click Add Host.

In the small dialog that opens, enter the host wild card. There are four possible types of host wild cards that can be set for each host: a single host (name or IP address), netgroups, wild cards (such as * indicating all machines can access the server), and IP networks. Then, in Options, include fsid=0 in the comma-separated list of options to configure the directory as pseudo root. If this directory should be bound to another directory under an already configured pseudo root, make sure that a target bind path is given in the option list with bind=/target/path.

For example, suppose that the directory /exports is chosen as the pseudo root directory for all the clients that can access the server. Then add this in the upper half and make sure that the options entered for this directory include fsid=0. If there is another directory, /data, that also needs to be NFSv4 exported, add this directory to the upper half. While entering options for this, make sure that bind=/exports/data is in the list and that /exports/data is an already existing subdirectory of /exports. Any change in the option bind=/target/path, whether addition, deletion, or change in value, is reflected in Bindmount targets. This column is not directly editable column, instead summarizing directories and their nature. After the information is complete, click Finish to complete the configuration or Start to restart the service.

27.4.2 NFSv3 and NFSv2 Exports

Make sure that Enable NFSv4 is not checked in the initial dialog before clicking Next.

The next dialog has two parts. In the upper text field, enter the directories to export. Below, enter the hosts that should have access to them. There are four types of host wild cards that can be set for each host: a single host (name or IP address), netgroups, wild cards (such as * indicating all machines can access the server), and IP networks.

This dialog is shown in Figure 27-5. Find a more thorough explanation of these options in man exports. Click Finish to complete the configuration.

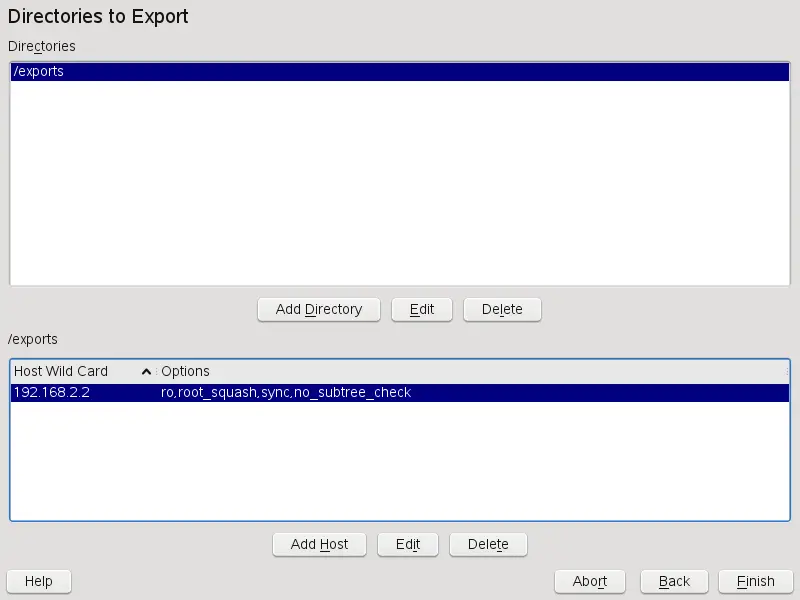

Figure 27-5 Exporting Directories with NFSv2 and v3

27.4.3 Coexisting v3 and v4 Exports

Both, NFSv3 and NFSv4 exports can coexist on a server. After enabling the support for NFSv4 in the initial configuration dialog, those exports for which fsid=0 and bind=/target/path are not included in the option list are considered v3 exports. Consider the example in Figure 27-3. If you add another directory, such as /data2, using Add Directory then in the corresponding options list do not mention either fsid=0 or bind=/target/path, this export acts as a v3 export.

IMPORTANT: Automatic Firewall Configuration

If SuSEfirewall2 is active on your system, YaST adapts its configuration for the NFS server by enabling the nfs service when Open Ports in Firewall is selected.
