11.4 Copying Files between Linux Computers
Linux offers a rich set of protocols you can use to copy files between
computers. Which protocol you use depends on how much effort you want to
invest and whether you need to be compatible with future Windows
installations. The following sections feature various methods to transfer
files from and to Linux computers. Make sure that you have a working network
connection, because otherwise they will not work. All scenarios rely on working name resolution in the
network. If your network does not include a name service, use IP
addresses directly or add the IP addresses along with respective hostnames
to /etc/hosts on all clients.
The following example IP addresses and hostnames are used across this
section:
11.4.1 Copying Files with SSH
The following requirements must be met on both computers that are
accessed via SSH:
-
If you use a hostname, make sure each hostname is listed in
/etc/hosts on both computers (see /etc/hosts, (↑ Reference ).) If you use SSH with IP
addresses, you do not need to change anything.
-
If you use a firewall, open the SSH port. To do so, start YaST,
and select
. Go to
and check whether
is displayed as part of the list. If this is not
the case, select SSH from and click
. Apply your changes and leave YaST with
and .
To copy files from one computer to another, you need to know where the
files are located. For example, to copy a single file
/srv/foo_file from computer
jupiter.example.com to the current
directory, use the scp command (the dot represents the
current directory as the copy target location): scp [email protected]:/srv/foo_file .
To copy a whole directory structure, use the recursive mode of
scp:
scp -r [email protected]:/srv/foo_directory .
If your network does not provide name resolution, use the server's IP
address directly: scp [email protected]:/srv/foo_file .
If you do not know exactly where your files are, use the
sftp command.
Copying files in KDE or GNOME with SFTP is very simple. Proceed as
follows:
-
Press Alt+F2.
-
Enter the following at the address prompt: sftp://[email protected]
-
Enter the password of tux on
jupiter.example.com.
-
Drag and drop the desired files or directories to your desktop or a
local directory.
KDE provides another protocol called fish that can
be used if sftp is not available. The use of this
protocol is similar to sftp. Just replace the
sftp protocol prefix of the URL with
fish: fish://[email protected]
11.4.2 Transferring Files with rsync
Before using rsync to synchronize files and directories between
different computers, make sure that the following requirements are met:
-
The package rsync is installed.
-
Identical users are available on both systems.
-
Enough disk space is available on the server.
-
If you want to benefit from rsync's full potential, make sure that
rsyncd is installed on the system to use as the server.
rsync is useful for archiving or copying data and can also be used as a
daemon to provide directories to the network (see Advanced Setup for rsync Synchronization).
rsync Basic Mode
The basic mode of operation of rsync does not require any special
configuration. rsync mirrors complete directories onto another
system. Its usage is not much different from a regular
copying tool, such as scp. The following command creates a backup of the home
directory of tux on
a backup server called jupiter:
rsync -Hbaz -e ssh /home/tux/ tux@jupiter:backup
Use the following command to apply your backup: rsync -Haz -e ssh tux@jupiter:backup /home/tux/
rsync Daemon Mode
Start the rsyncd daemon on one of your systems to make use of the full
functionality of rsync. In this mode, it is possible to create
synchronization points (modules) that can be accessed without an account. To
use the rsyncd daemon, proceed as follows:
Advanced Setup for rsync Synchronization
-
Log in as root and install the rsync package.
-
Configure your synchronization points in
/etc/rsyncd.conf. Add a point with its name in
brackets and add the path keyword like in the
following example:
[FTP]
path = /srv/ftp
comment = An Example
-
Start the rsyncd daemon as root with
rcrsyncd start.
To start the rsync service automatically during each system boot,
run insserv rsyncd.
-
List all files located in the
/srv/ftp directory (note the double colon): rsync -avz jupiter::FTP
-
Initiate the transfer by providing a target directory (in this
example, the current directory is represented by a dot): rsync -avz jupiter::FTP .
By default, files are not deleted while synchronizing with rsync. To
force file deletion, add the --delete option. To make sure
that --delete does not accidentally remove newer
files, use the --update option instead. Any conflicts that
arise must be resolved manually.
11.4.3 Transferring Files with Unison
Before using Unison to synchronize files and directories between
different computers, make sure that the following requirements are met:
-
The package unison is installed.
-
Enough disk space is available on your local and remote
computer.
-
If you want to benefit from Unison's full potential, make sure that
Unison is also installed and running on the remote computer.
In case you need help, run Unison with the -doc topics
option to get a full list of available sections.
For permanent settings, Unison allows to create
profiles that specify Unison preferences such as the
directories (roots) to synchronize, which types of files to ignore, and
other options. The profiles are stored as text files in
~/.unison with the file extension
*.prf.
Using the GUI
To synchronize different directories with Unison's GUI, proceed as
follows:
-
Start Unison by pressing Alt+F2 and entering unison.
-
If you run Unison for the first time and without any further option,
you are prompted for a source directory. Enter the source directory you
want to synchronize and click .
-
Enter the target directory. It can be either local or remote. If you
want to synchronize to a remote directory, choose the method (SSH, RSH or
Socket) and enter the hostname and an optional user.
-
If you have not synchronized these two directories before, a warning
dialog appears, informing you that Unison will now compare the contents
of those directories. Close the warning with and
wait until Unison has collected the information from both directories
and displays the differences in the main window.

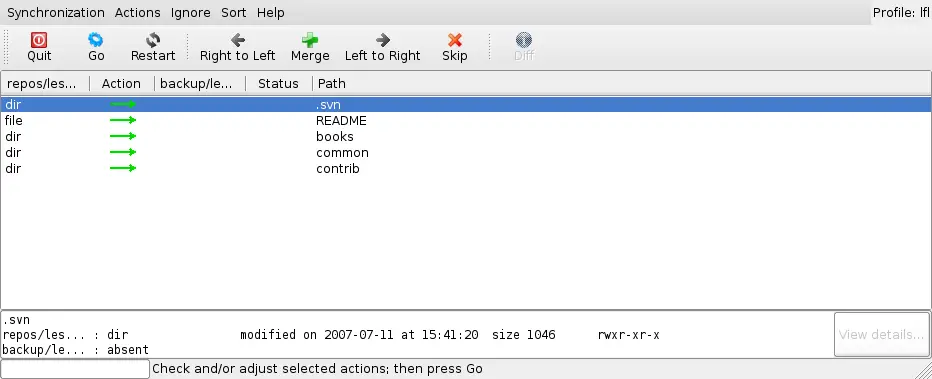

The left column shows the source directory you have selected, the
third column shows the target directory. If there are differences between
the directories, the column shows a symbol,
proposing an action. A green arrow indicates that a file has been
modified, added or deleted in the source or the target directory. The
direction of the arrow indicates the direction that the change would be
propagated if you performed the synchronization now. A question mark
indicates a conflict (both files have been changed and Unison cannot
decide which one to overwrite).
-
To modify the proposals Unison shows for each file (for example, if
you want to change the direction), select the file and click
or .
With , exclude a file from synchronization. The
symbol in the column changes
accordingly.
-
To start the synchronization, click .
The next time you start Unison, a dialog box shows the existing
profiles, each specifying a pair of directories to be synchronized. Select
a profile or create a new profile (for another pair of directories) and
perform the synchronization as described above.
Using the Command Line
Unison can also be operated through the command line. To synchronize a
local directory to a remote computer, proceed as follows:
-
Open a shell and enter the following command: unison -ui text DIR
ssh://[email protected]//PATH
Replace the placeholders with the respective values.
-
Unison asks you what to do with your files and directories, for
example: local jupiter
<---- new file dir [f]
-
Press F if you want to follow Unison's
recommendation. For other commands, press ?.
-
Proceed with y, if you want to propagate your
updates.
11.4.4 Copying Files with FTP
Before configuring your FTP server, make sure that the following
requirements are met:
-
The package vsftp is
installed.
-
You have root access to your FTP server.
-
Enough disk space is available on your computer.
WARNING: For Home Networks Only
This setup is suited for use in
home networks only. Do not deploy it to sites unprotected by
firewalls and do not enable world wide access. To configure an FTP server, proceed as follows:
-
Prepare the FTP server:
-
Open a shell, log in as root, and save a backup copy of
/etc/vsftpd.conf: cp /etc/vsftpd.conf /etc/vsftpd.conf.bak
-
Create an access point for anonymous FTP mkdir ~ftp/incoming
chown -R ftp:ftp ~ftp/incoming
-
Replace the configuration files according to the preferred scenario
(refer to the manual page of vsftpd.conf for advanced
configuration options):
- Allowing Anonymous Read and Write Access
#
listen=YES
# Enable anonymous access to FTP server
anonymous_enable=YES
#
local_enable=YES
# Enable write access
write_enable=YES
anon_upload_enable=YES
anon_mkdir_write_enable=YES
dirmessage_enable=YES
# Write log file
xferlog_enable=YES
connect_from_port_20=YES
chown_uploads=YES
chown_username=ftp
ftpd_banner=Welcome to FTP service.
anon_root=/srv/ftp - Grant Restricted Permissions to FTP Users (Home Only)
chroot_local_users=YES
-
Restart the FTP server: rcvsftp start
On the client, just enter the URL
ftp://HOST in your browser or
FTP client. Replace HOST with the
hostname or IP address of your server. There are many graphical user
interfaces available that are suited to browsing the contents of your FTP
server. For a list of them, just enter FTP at the search prompt of the
YaST package manager.
|
|
|
