Chapter 8 |
 |
This chapter describes how you can use Linux for common desktop
computing tasks. You'll learn about popular desktop suites and
applications. This chapter also introduces VMWare, a program that lets
you run Microsoft Windows and Linux simultaneously, and WINE, a
program that lets you run some Microsoft applictions under Linux.
The Debian Project is firmly committed to including only truly
Open Source software in its main distribution. Not all the programs
mentioned in this chapter and the next meet the Open Source
definition. Part of the beauty of Linux, though, is the ease with
which it can be enhanced. The Contributed and Non-free archives on the
Debian site include a wealth of additional software, and some programs
are available direct from third party providers.
Not long ago, running Linux meant abandoning your easy-to-use WYSIWYG
word processor or configuring your system for dual boot, so that you
could boot Microsoft Windows or IBM OS/2 to access friendly and
familiar desktop applications. At that time, Linux supported no
robust, full-featured graphical desktop suites.
Today, Linux supports several desktop suites; several more are under
development. Apparently, if rumors are to be believed, even Microsoft
is considering adapting their Office desktop suite to run under
Linux. Whether or not Linux users can expect to soon run Microsoft
Office for Linux (or whatever name Microsoft might give this potential
product), Linux users who prefer to avoid other operating systems can
now do so without compromising their ability to produce first-rate
documents, spreadsheets, and graphics.
This section describes the three most popular desktop applications for Linux:
In addition, this section briefly describes other desktop options:
-
Angoss SmartWare -
Axene Xclamation -
KOffice -
Lotus eSuite -
Quadratron Cliq -
TeX
The final section presents two entirely different approaches to desktop computing:
-
The VMware virtual platform, which lets you run Windows and Linux simultaneously on a single computer -
WINE, which lets you run DOS and Windows programs under Linux
Applix distributes Applixware, a desktop suite available for a variety of platforms, including Microsoft Windows 9x, Microsoft Windows NT, and several varieties of UNIX, including Linux. Applixware is commercial software, but much less expensive than Microsoft Word. Currently, Applixware for Linux is priced at $99 (US); you can purchase it from the Applix web site,
https://www.applix.com/. Print documentation and support programs are also available, at additional cost. If you prefer to try before buying, you can download a feature-disabled demo version; however, the download is quite large (over 38 MB) and therefore time-consuming (over 3 hours at 28.8 Kbps) unless you have a high-speed connection to the Internet.
Applixware includes eight main components:
-
Words, a WYSIWYG word processor -
Spreadsheets, a graphical spreadsheet application -
Presents, a presentation graphics application -
Graphics, a drawing, charting, and graphics editing application -
Mail, an email client -
HTML Author, an application for authoring web documents -
Data, an application for accessing data held in Oracle, Informix, Sybase, or CA-Ingres databases -
Builder, an application development environment for decision support systems
Once you've installed Applixware, you can run it by starting X and using a terminal window to issue the following commands: DISPLAY=localhost:0
/opt/applix/applix
If you installed Applixware to a directory other than
/opt/applix, you'll need to adapt the second command accordingly.

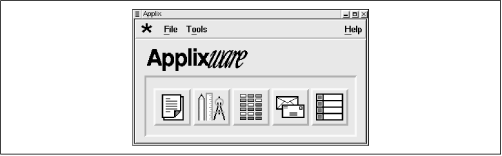

When Applixware starts up, it displays a window containing the Applixware main menu, shown in

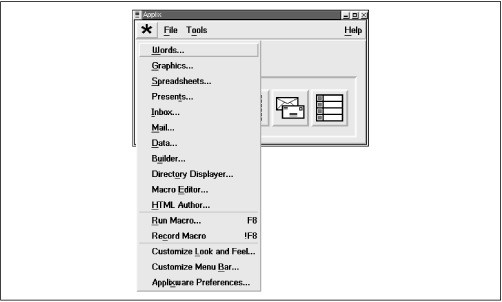

Figure 8.1. From the toolbar of the main menu, you can simply click to launch Words, Graphics and Presents, Spreadsheets, Mail, or Data. Alternatively, you can click on the asterisk icon, causing Applixware to display a menu, as shown in
Figure 8.2.

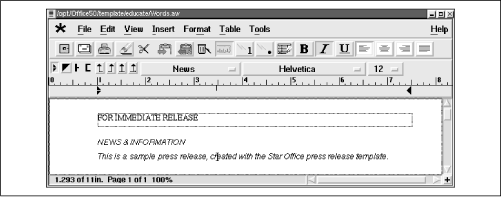

Figure 8.3 shows the Words application. Words includes a spelling checker and supports document templates, tables, multimedia, and live links to Applixware and third-party documents. Moreover, it lets you import and export a variety of document formats, including Microsoft Word 2.0, 6.0, 7.0/95, and 97.

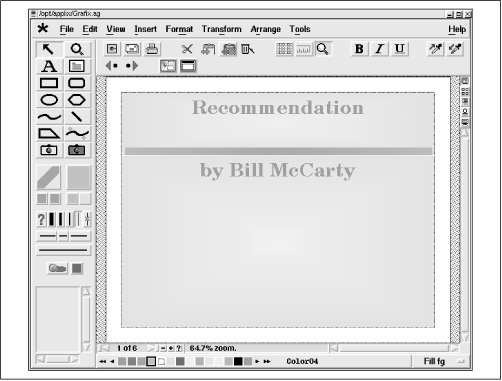

Figure 8.4 shows the Presents application, which lets you create presentations in a way that resembles that provided by Microsoft PowerPoint. Presents provides features such as transitions and animation, HTML export, and templates. Its drawing tools let you draw lines, curves, and shapes, and perform other operations, such as rotations and fills. Presents can also import and export PowerPoint presentations and a variety of other document types.
Although a Linux application, such as Words or Presents, may be able to import a Microsoft Office document, the application may not be able to handle the full range of document and object types that can be embedded in an Office document. Some document and object types, for example, require access to a host application that runs only under Microsoft Windows.
Moreover, some Linux applications do not currently support all the styles and options of their Office counterparts. For example, if a document uses Microsoft's Visual Basic for Applications, the document will probably not function correctly under Linux.
If you plan on moving documents to and from Office, you may want to save your documents in a portable format (such as RTF), rather than a Microsoft proprietary format. This will significantly improve the chances that your document will work correctly both in Windows and Linux.

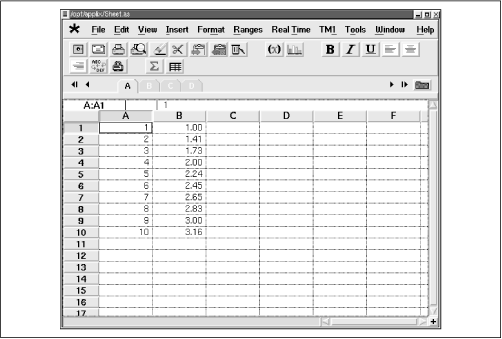

Figure 8.5 shows the Spreadsheets application, which provides functions similar to those of Microsoft Excel. Spreadsheets lets you create ordinary spreadsheets as well as 3D charts and sheets, and supports live links to objects created by Applixware and third-party applications, including Applix Data, which provides access to relational databases. Spreadsheets implements Applix's Extension Language Facility (ELF), which lets you add custom functions to the hundreds of built-in functions. Spreadsheets can import and export a variety of document types, including Lotus 1-2-3 (WKS, WK1, WK3, and WK4 files) and Microsoft Excel 3.0, 4.0, 5.0, 7.0/95, and 97.
Another popular Linux desktop suite is StarOffice, a product of Sun
Microsystems. StarOffice is available free of charge from Sun's web
site,
https://www.sun.com/products/staroffice/. The
download is about 70 MB, requiring over 6 hours at 28.8 Kbps. The
office suite is also available on CD-ROM, for a cost of $9.95 plus
shipping and handling.
StarOffice includes an extensive range of applications,
including:
-
StarDesktop, a file manager and desktop -
StarWriter, a word processor -
StarCalc, a spreadsheet application -
StarDraw, a drawing application -
StarImpress, a presentation graphics application -
StarBase, a relational database -
StarSchedule, a personal organizer that keeps track of events, tasks, contacts, and projects -
StarMail, an email client -
StarDiscussion, an Internet newsgroup reader -
SharChart, a business graphics application -
StarImage, an image editor that provides many special effects -
StarMath, a formula editor
To install StarOffice from a StarOffice CD-ROM, log in, mount the CD-ROM, change to the directory that is the mount point of the CD-ROM device, change to the
Office50/english/prod_lnx subdirectory, and issue the
setup command: su -
mount -t iso9660 /dev/cdrom /cdrom
cd /cdrom/Office50/english/prod_lnx
./setup
The install program will guide you through the installation process.
If you have downloaded the personal edition, you have a tar file, rather than a CD-ROM diskette. The tar file has a name similar to
so501_01.tar. Change to the directory in which you saved the tar file (for example,
/download) and issue the following commands: tar xvf so501_01.tar
cd so501_inst
./setup
If you saved your tar file using a name other than
so501_01.tar, you'll need to adapt the first and second commands accordingly. As when you install from CD-ROM diskette, the install program will guide you through the installation process.
Whether you're installing from CD-ROM diskette or a downloaded file, you should check the
README file in the
Office50 directory for additional information and instructions that will help you install and use StarOffice.
Once you have installed StarOffice, you can run it by starting X and using a terminal window to issue the following commands: PATH=$PATH:/opt/Office50/bin
soffice
If you installed StarOffice into a directory other than
/opt/Office50, you'll need to adapt the first command accordingly.

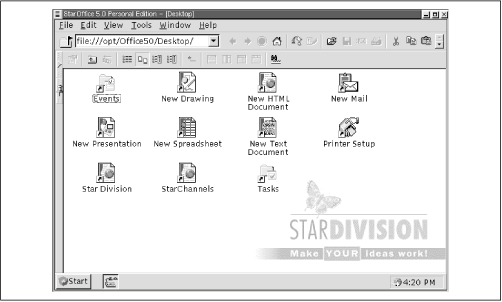

When StarOffice loads, it automatically launches the StarDesktop application, as shown in
Figure 8.6. StarDesktop resembles Windows Explorer and the GNOME File Manager. It lets you point, click, drag, and drop to open and manage document files and folders.

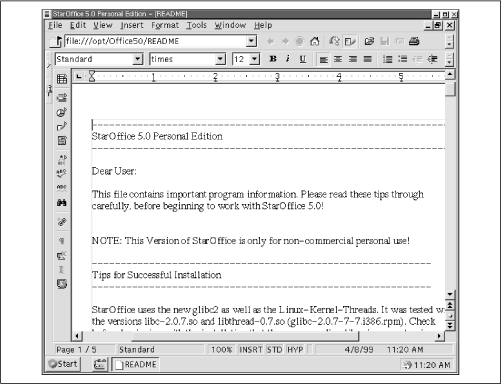

Figure 8.7 shows StarWriter, StarOffice's word processor. StarWriter provides PGP-encrypted email and other features not found in Microsoft Office 97. Like Applixware's Words, it imports and exports a variety of document types, including Microsoft Word 97.
Figure 8.8 shows StarImpress, the presentation graphics application included in StarOffice. Like Applixware's Presents, StarImpress imports and exports a variety of document types, including PowerPoint 97. StarImpress provides templates, animation and transitions, 3D effects, charts, and many other features.

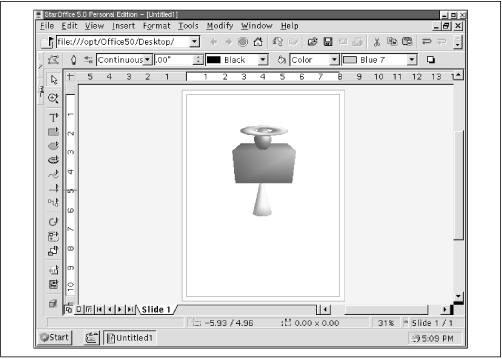

Figure 8.9 shows StarDraw, StarOffice's drawing program. StarDraw provides a wide range of drawing tools and effects, and works with a variety of file types, including even Windows Metafile (WMF).
In addition to the bread-and-butter applications provided by Applixware, StarOffice provides several smaller, but quite useful, applications. For example,

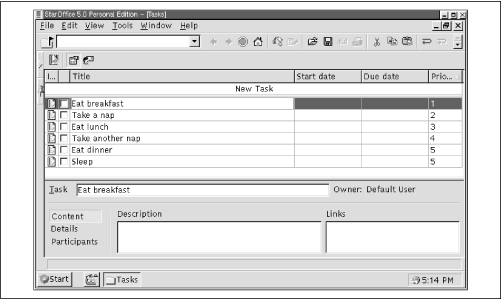

Figure 8.10 shows StarSchedule, which can help you keep track of the tasks on your to do list.
Another popular desktop application is Corel's WordPerfect for Linux, available free of charge for personal use from Corel's web site,
https://www.corel.com/. WordPerfect is more a word processor than a complete desktop suite; for example, no spreadsheet application accompanies it. However, WordPerfect does provide many functions and features, including:
A personal retail version (currently available for $69.95 US) adds features such as:
-
advanced drawing and charting functions -
version control -
clipart images, photos, textures, templates, and fonts
The downloadable version is about 24 MB in size, about a 2 hour download at 28.8 Kbps.
To install the downloaded version of WordPerfect for Linux, change to the directory that contains the downloaded file and issue the following command: DISPLAY=localhost:0
Then start X, open a terminal window, and issue the following commands: cd /download
tar zxvf wp.tgz
./Runme
If your downloaded file has a name other than
wp.tgz or if it resides in a directory other than
/download, you'll need to adapt these commands accordingly.
The install program will guide you through the installation process.
To install the CD-ROM version of WordPerfect for Linux, follow the instructions that accompany the CD-ROM.
Some web sites, including the Corel web site, may provide WordPerfect for Linux as an uncompressed file. If the
tar command fails with an error message indicating that the file is not in the gzip format, use the following command to unpack the file: tar xvf wp.tgz
Once you've installed WordPerfect for Linux, you can run it by
starting X and using a terminal window to issue the command: /opt/corelwp8/wpbin/xwp

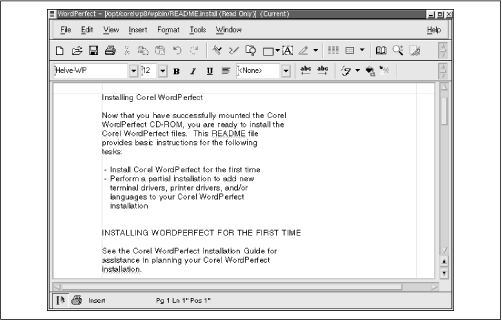

Figure 8.11 shows WordPerfect for Linux in operation.
Table 8.1 describes some other desktop applications available for Linux. Notable among these is TeX, a freely available desktop publishing package of unsurpassed power. Because of its powerful and sophisticated handling of formulas and mathematical notation, TeX is a favorite among scientists and mathematicians.
Table 8.1: Other Desktop Applications for Linux
|
Application |
Web site |
Description |
|
Angoss SmartWare |
https://www.angoss.com/ |
Includes a word processor, spreadsheet, and relational database. Print- and save-disabled demo version available for free download. Registration fee $50 (US). |
|
Axene Office |
https://www.axene.com/ |
Includes a word processor, desktop publishing application, and spreadsheet. Linux license $49 (US). Printed manuals $60 (US) per application. |
|
KOffice |
https://koffice.kde.org/ |
GPLed desktop suite. Currently in alpha release. |
|
Lotus eSuite |
https://www.lotus.com/ home.nsf/tabs/esuite1 |
Java applets that provide a word processor, spreadsheet, presentation graphics, project scheduler, chart, SQL/JDBC, and CGI gateway. Single-user license $127 (US). |
|
Quadratron Cliq |
https://www.quad.com/ |
Character-based desktop suite. Single-user license $49 (US). |
|
TeX |
https://www.ctan.org/ |
GPLed desktop publishing application. Sophisticated and powerful but somewhat cumbersome to use.
|
|
|
 |
|
|
