The “Rounded Rectangle” Script-fu command converts an
existing selection (rectangular, elliptical or other shape) into a
rectangular selection with rounded corners. The corners can be curved
toward the inside (concave) or toward the outside (convex). To do this,
the command adds or removes circles at the corners of the selection.
7.14.1.
Activating the Command
7.14.2.

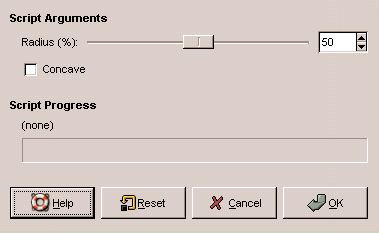

Description of the “Rounded Rectangle” Dialog Window
-
Radius (%)
-
You can enter the radius of the rounded corner in percent by
using a slider or a text field. This value is a percentage of
the height or the width, whichever is less.
-
Concave
-
If you check this box, the corners will be concave (curving
toward the inside), rather than convex (curving toward the
outside).
