Your first task is to allocate disk space for FreeBSD, and label that space so that sysinstall can prepare it. In order to do this you need to know
how FreeBSD expects to find information on the disk.
Before you install and configure FreeBSD on your system, there is an important subject
that you should be aware of, especially if you have multiple hard drives.
In a PC running a BIOS-dependent operating system such as MS-DOS® or Microsoft® Windows®,
the BIOS is able to abstract the normal disk drive order, and the operating system goes
along with the change. This allows the user to boot from a disk drive other than the
so-called “primary master”. This is especially convenient for some users who
have found that the simplest and cheapest way to keep a system backup is to buy an
identical second hard drive, and perform routine copies of the first drive to the second
drive using Ghost® or XCOPY . Then, if the first drive fails, or is attacked by a
virus, or is scribbled upon by an operating system defect, he can easily recover by
instructing the BIOS to logically swap the drives. It is like switching the cables on the
drives, but without having to open the case.
More expensive systems with SCSI controllers often include BIOS extensions which allow
the SCSI drives to be re-ordered in a similar fashion for up to seven drives.
A user who is accustomed to taking advantage of these features may become surprised
when the results with FreeBSD are not as expected. FreeBSD does not use the BIOS, and
does not know the “logical BIOS drive mapping”. This can lead to very
perplexing situations, especially when drives are physically identical in geometry, and
have also been made as data clones of one another.
When using FreeBSD, always restore the BIOS to natural drive numbering before
installing FreeBSD, and then leave it that way. If you need to switch drives around, then
do so, but do it the hard way, and open the case and move the jumpers and cables.
Note: No changes you make at this point will be written to the disk. If you
think you have made a mistake and want to start again you can use the menus to exit sysinstall and try again or press U to use
the option. If you get confused and can not see how
to exit you can always turn your computer off.
After choosing to begin a standard installation in sysinstall you will be shown this message:
Message
In the next menu, you will need to set up a DOS-style ("fdisk")
partitioning scheme for your hard disk. If you simply wish to devote
all disk space to FreeBSD (overwriting anything else that might be on
the disk(s) selected) then use the (A)ll command to select the default
partitioning scheme followed by a (Q)uit. If you wish to allocate only
free space to FreeBSD, move to a partition marked "unused" and use the
(C)reate command.
[ OK ]
[ Press enter or space ]
Press Enter as instructed. You will then be shown a list of all
the hard drives that the kernel found when it carried out the device probes. Figure 2-13 shows an example from a
system with two IDE disks. They have been called ad0 and ad2.
You might be wondering why ad1 is not listed here. Why has
it been missed?
Consider what would happen if you had two IDE hard disks, one as the master on the
first IDE controller, and one as the master on the second IDE controller. If FreeBSD
numbered these as it found them, as ad0 and ad1 then everything would work.
But if you then added a third disk, as the slave device on the first IDE controller,
it would now be ad1, and the previous ad1 would become ad2. Because device
names (such as ad1s1a) are used to find filesystems, you may
suddenly discover that some of your filesystems no longer appear correctly, and you would
need to change your FreeBSD configuration.
To work around this, the kernel can be configured to name IDE disks based on where
they are, and not the order in which they were found. With this scheme the master disk on
the second IDE controller will always be ad2, even if there are
no ad0 or ad1 devices.
This configuration is the default for the FreeBSD kernel, which is why this display
shows ad0 and ad2. The machine on
which this screenshot was taken had IDE disks on both master channels of the IDE
controllers, and no disks on the slave channels.
You should select the disk on which you want to install FreeBSD, and then press [ OK ]. FDisk will start,
with a display similar to that shown in Figure 2-14.
The FDisk display is broken into three sections.
The first section, covering the first two lines of the display, shows details about
the currently selected disk, including its FreeBSD name, the disk geometry, and the total
size of the disk.
The second section shows the slices that are currently on the disk, where they start
and end, how large they are, the name FreeBSD gives them, and their description and
sub-type. This example shows two small unused slices, which are artifacts of disk layout
schemes on the PC. It also shows one large FAT slice,
which almost certainly appears as C: in MS-DOS / Windows, and an extended
slice, which may contain other drive letters for MS-DOS /
Windows.
The third section shows the commands that are available in FDisk.
What you do now will depend on how you want to slice up your disk.
If you want to use FreeBSD for the entire disk (which will delete all the other data
on this disk when you confirm that you want sysinstall to
continue later in the installation process) then you can press A,
which corresponds to the option. The
existing slices will be removed, and replaced with a small area flagged as unused (again, an artifact of PC disk layout), and then one large
slice for FreeBSD. If you do this, then you should select the newly created FreeBSD slice
using the arrow keys, and press S to mark the slice as being
bootable. The screen will then look very similar to Figure 2-15. Note the A in the Flags column, which indicates that
this slice is active, and will be
booted from.
If you will be deleting an existing slice to make space for FreeBSD then you should
select the slice using the arrow keys, and then press D. You can
then press C, and be prompted for size of slice you want to create.
Enter the appropriate figure and press Enter. The default value in
this box represents the largest possible slice you can make, which could be the largest
contiguous block of unallocated space or the size of the entire hard disk.
If you have already made space for FreeBSD (perhaps by using a tool such as PartitionMagic®) then you can
press C to create a new slice. Again, you will be prompted for the
size of slice you would like to create.
When finished, press Q. Your changes will be saved in sysinstall, but will not yet be written to disk.

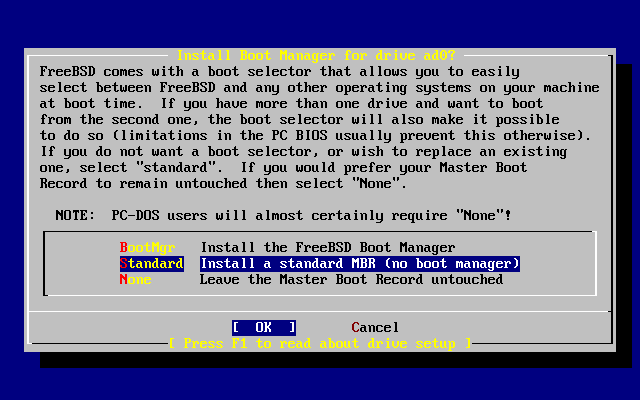

You now have the option to install a boot manager. In general, you should choose to
install the FreeBSD boot manager if:
-
You have more than one drive, and have installed FreeBSD onto a drive other than the
first one.
-
You have installed FreeBSD alongside another operating system on the same disk, and
you want to choose whether to start FreeBSD or the other operating system when you start
the computer.
If FreeBSD is going to be the only operating system on this machine, installed on the
first hard disk, then the boot manager will
suffice. Choose if you are using a third-party boot
manager capable of booting FreeBSD.
Make your choice and press Enter.
The help screen, reached by pressing F1, discusses the problems
that can be encountered when trying to share the hard disk between operating systems.
If there is more than one drive, it will return to the Select Drives screen after the
boot manager selection. If you wish to install FreeBSD on to more than one disk, then you
can select another disk here and repeat the slice process using FDisk.
Important: If you are installing FreeBSD on a drive other than your first, then
the FreeBSD boot manager needs to be installed on both drives.
The Tab key toggles between the last drive selected, [ OK ], and [ Cancel ].
Press the Tab once to toggle to the [ OK ], then press Enter to
continue with the installation.
You must now create some partitions inside each slice that you have just created.
Remember that each partition is lettered, from a through to h, and that partitions b, c, and d have conventional meanings that
you should adhere to.
Certain applications can benefit from particular partition schemes, especially if you
are laying out partitions across more than one disk. However, for this, your first
FreeBSD installation, you do not need to give too much thought to how you partition the
disk. It is more important that you install FreeBSD and start learning how to use it. You
can always re-install FreeBSD to change your partition scheme when you are more familiar
with the operating system.
This scheme features four partitions--one for swap space, and three for
filesystems.
Table 2-2. Partition Layout for First Disk
| Partition |
Filesystem |
Size |
Description |
| a |
/ |
512 MB |
This is the root filesystem. Every other filesystem will be mounted somewhere under
this one. 512 MB is a reasonable size for this filesystem. You will not be storing
too much data on it, as a regular FreeBSD install will put about 128 MB of data
here. The remaining space is for temporary data, and also leaves expansion space if
future versions of FreeBSD need more space in /. |
| b |
N/A |
2-3 x RAM |
The system's swap space is kept on the b partition. Choosing
the right amount of swap space can be a bit of an art. A good rule of thumb is that your
swap space should be two or three times as much as the available physical memory (RAM).
You should also have at least 64 MB of swap, so if you have less than 32 MB of
RAM in your computer then set the swap amount to 64 MB.
If you have more than one disk then you can put swap space on each disk. FreeBSD
will then use each disk for swap, which effectively speeds up the act of swapping. In
this case, calculate the total amount of swap you need (e.g., 128 MB), and then
divide this by the number of disks you have (e.g., two disks) to give the amount of swap
you should put on each disk, in this example, 64 MB of swap per disk.
|
| e |
/var |
256 MB to 1024 MB |
The /var directory contains files that are constantly
varying; log files, and other administrative files. Many of these files are read-from or
written-to extensively during FreeBSD's day-to-day running. Putting these files on
another filesystem allows FreeBSD to optimize the access of these files without affecting
other files in other directories that do not have the same access pattern. |
| f |
/usr |
Rest of disk (at least 2 GB) |
All your other files will typically be stored in /usr and
its subdirectories. |
Warning: The values above are given as example and should be used by
experienced users only. Users are encouraged to use the automatic partition layout called
Auto Defaults by the FreeBSD partition editor.
If you will be installing FreeBSD on to more than one disk then you must also create
partitions in the other slices that you configured. The easiest way to do this is to
create two partitions on each disk, one for the swap space, and one for a filesystem.
Table 2-3. Partition Layout for Subsequent Disks
| Partition |
Filesystem |
Size |
Description |
| b |
N/A |
See description |
As already discussed, you can split swap space across each disk. Even though the a partition is free, convention dictates that swap space stays on
the b partition. |
| e |
/diskn |
Rest of disk |
The rest of the disk is taken up with one big partition. This could easily be put on
the a partition, instead of the e
partition. However, convention says that the a partition on a
slice is reserved for the filesystem that will be the root (/)
filesystem. You do not have to follow this convention, but sysinstall does, so following it yourself makes the installation
slightly cleaner. You can choose to mount this filesystem anywhere; this example suggests
that you mount them as directories /diskn, where n is a
number that changes for each disk. But you can use another scheme if you prefer. |
Having chosen your partition layout you can now create it using sysinstall. You will see this message:
Message
Now, you need to create BSD partitions inside of the fdisk
partition(s) just created. If you have a reasonable amount of disk
space (200MB or more) and don't have any special requirements, simply
use the (A)uto command to allocate space automatically. If you have
more specific needs or just don't care for the layout chosen by
(A)uto, press F1 for more information on manual layout.
[ OK ]
[ Press enter or space ]
Press Enter to start the FreeBSD partition editor, called Disklabel.
Figure 2-18 shows the display when
you first start Disklabel. The display is divided in to three
sections.
The first few lines show the name of the disk you are currently working on, and the
slice that contains the partitions you are creating (at this point Disklabel calls this the Partition name
rather than slice name). This display also shows the amount of free space within the
slice; that is, space that was set aside in the slice, but that has not yet been assigned
to a partition.
The middle of the display shows the partitions that have been created, the name of the
filesystem that each partition contains, their size, and some options pertaining to the
creation of the filesystem.
The bottom third of the screen shows the keystrokes that are valid in Disklabel.
Disklabel can automatically create partitions for you and
assign them default sizes. The default sizes are calculated with the help of an internal
partition sizing algorithm based on the disk size. Try this now, by Pressing A. You will see a display similar to that shown in Figure 2-19. Depending on the size of the
disk you are using, the defaults may or may not be appropriate. This does not matter, as
you do not have to accept the defaults.
Note: The default partitioning assigns the /tmp
directory its own partition instead of being part of the /
partition. This helps avoid filling the / partition with
temporary files.
If you choose to not use the default partitions and wish to replace them with your
own, use the arrow keys to select the first partition, and press D
to delete it. Repeat this to delete all the suggested partitions.
To create the first partition (a, mounted as / -- root), make sure the proper disk slice at the top of the
screen is selected and press C. A dialog box will appear prompting
you for the size of the new partition (as shown in Figure 2-20). You can enter the size
as the number of disk blocks you want to use, or as a number followed by either M for megabytes, G for gigabytes, or C for cylinders.
The default size shown will create a partition that takes up the rest of the slice. If
you are using the partition sizes described in the earlier example, then delete the
existing figure using Backspace, and then type in 512M, as shown in Figure 2-21. Then press [ OK ].
Having chosen the partition's size you will then be asked whether this partition will
contain a filesystem or swap space. The dialog box is shown in Figure 2-22. This first partition
will contain a filesystem, so check that is selected
and press Enter.
Finally, because you are creating a filesystem, you must tell Disklabel where the filesystem is to be mounted. The dialog box
is shown in Figure 2-23. The root
filesystem's mount point is /, so type /, and then press Enter.
The display will then update to show you the newly created partition. You should
repeat this procedure for the other partitions. When you create the swap partition, you
will not be prompted for the filesystem mount point, as swap partitions are never
mounted. When you create the final partition, /usr, you can
leave the suggested size as is, to use the rest of the slice.
Your final FreeBSD DiskLabel Editor screen will appear similar to Figure 2-24, although your values chosen
may be different. Press Q to finish.
