NOTE: CentOS Enterprise Linux is built from the Red Hat Enterprise Linux source code. Other than logo and name changes CentOS Enterprise Linux is compatible with the equivalent Red Hat version. This document applies equally to both Red Hat and CentOS Enterprise Linux.

23.3. Connecting to a Samba Share

You can use Nautilus to view available Samba shares on your network. Select Main Menu Button (on the Panel) => Network Servers to view a list of Samba workgroups on your network. You can also type smb: in the Location: bar of Nautilus to view the workgroups.

As shown in Figure 23-6, an icon appears for each available SMB workgroup on the network.

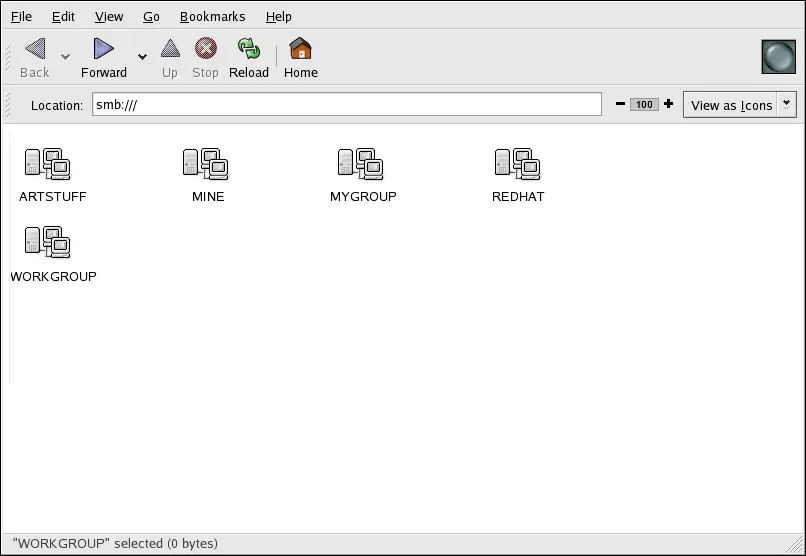

Figure 23-6. SMB Workgroups in Nautilus

Double-click one of the workgroup icons to view a list of computers within the workgroup.

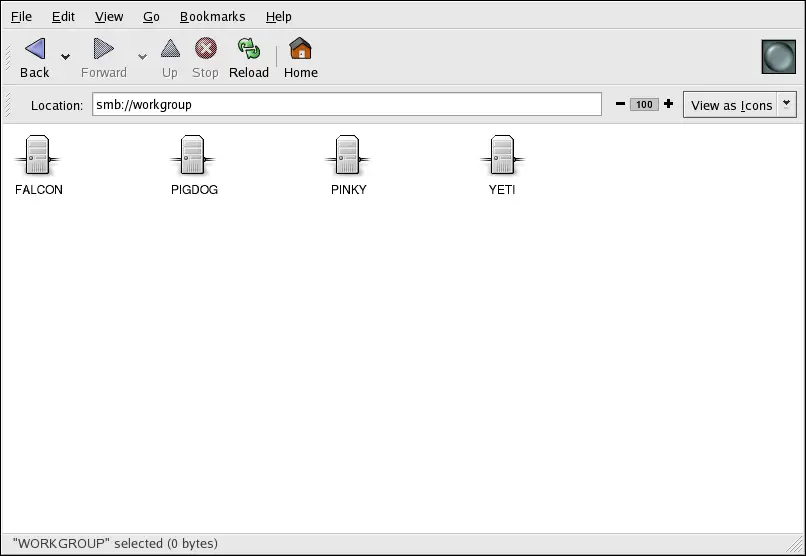

Figure 23-7. SMB Machines in Nautilus

As you can see from Figure 23-7, there is an icon for each machine within the workgroup. Double-click on an icon to view the Samba shares on the machine. If a username and password combination is required, you are prompted for them.

Alternately, you can also specify the Samba server and sharename in the Location: bar for Nautilus using the following syntax (replace <servername> and <sharename> with the appropriate values):

smb://<servername>/<sharename>/

23.3.1. Command Line

To query the network for Samba servers, use the findsmb command. For each server found, it displays its IP address, NetBIOS name, workgroup name, operating system, and SMB server version.

To connect to a Samba share from a shell prompt, type the following command:

smbclient //<hostname>/<sharename> -U <username>

Replace <hostname> with the hostname or IP address of the Samba server you want to connect to, <sharename> with the name of the shared directory you want to browse, and <username> with the Samba username for the system. Enter the correct password or press [Enter] if no password is required for the user.

If you see the smb:\> prompt, you have successfully logged in. Once you are logged in, type help for a list of commands. If you wish to browse the contents of your home directory, replace sharename with your username. If the -U switch is not used, the username of the current user is passed to the Samba server.

To exit smbclient, type exit at the smb:\> prompt.

23.3.2. Mounting the Share

Sometimes it is useful to mount a Samba share to a directory so that the files in the directory can be treated as if they are part of the local file system.

To mount a Samba share to a directory, create the directory if it does not already exist, and execute the following command as root:

mount -t  smbfs -o username=<username> //<servername>/<sharename> /mnt/point/

This command mounts <sharename> from <servername> in the local directory /mnt/point/.
