NOTE: CentOS Enterprise Linux 5 is built from the Red Hat Enterprise Linux source code. Other than logo and name changes CentOS Enterprise Linux 5 is compatible with the equivalent Red Hat version. This document applies equally to both Red Hat and CentOS Enterprise Linux 5.

33.3. Adding a Samba (SMB) Printer

You can add a Samba (SMB) based printer share by clicking the New Printer button in the main Printer Configuration Tool window to display the window in Figure 33.2, “Adding a Printer”. Enter a unique name for the printer in the Printer Name field. The printer name can contain letters, numbers, dashes (-), and underscores (_); it must not contain any spaces.

You can also use the Description and Location fields to further distinguish this printer from others that may be configured on your system. Both of these fields are optional, and may contain spaces.

Adding a SMB Printer

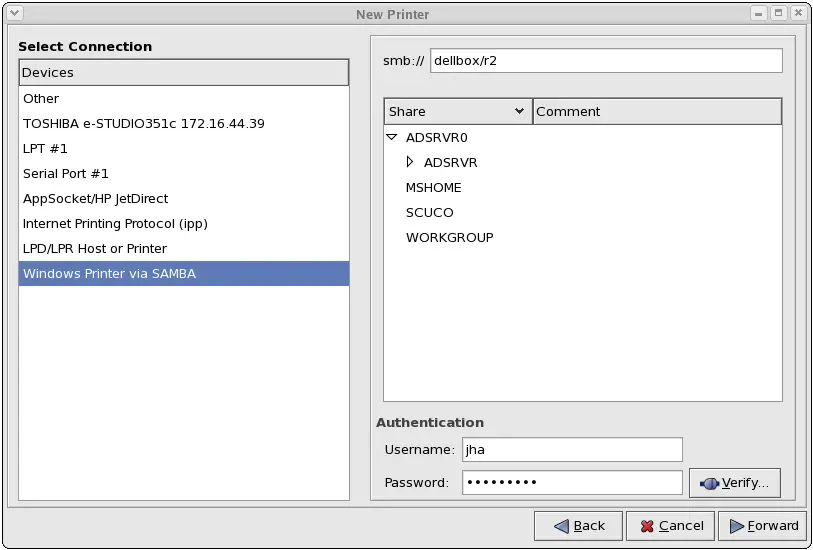

Figure 33.5. Adding a SMB Printer

As shown in Figure 33.5, “Adding a SMB Printer”, available SMB shares are automatically detected and listed in the Share column. Click the arrow ( ) beside a Workgroup to expand it. From the expanded list, select a printer.

If the printer you are looking for does not appear in the list, enter the SMB address in the smb:// field. Use the format computer name/printer share. In Figure 33.5, “Adding a SMB Printer”, the computer name is dellbox, while the printer share is r2.

In the Username field, enter the username to access the printer. This user must exist on the SMB system, and the user must have permission to access the printer. The default user name is typically guest for Windows servers, or nobody for Samba servers.

Enter the Password (if required) for the user specified in the Username field.

You can then test the connection by clicking Verify. Upon successful verification, a dialog box appears confirming printer share accessibility.

Next, select the printer type. Refer to Section 33.5, “Selecting the Printer Model and Finishing” for details.

Warning

Samba printer usernames and passwords are stored in the printer server as unencrypted files readable by root and lpd. Thus, other users that have root access to the printer server can view the username and password you use to access the Samba printer.

As such, when you choose a username and password to access a Samba printer, it is advisable that you choose a password that is different from what you use to access your local Red Hat Enterprise Linux system.

If there are files shared on the Samba print server, it is recommended that they also use a password different from what is used by the print queue.
