16.16. Creating a Custom Layout or Modifying the Default Layout

If you chose one of the four automatic partitioning options and did not select Review, skip ahead to Section 16.17, “Write changes to disk”.

If you chose one of the automatic partitioning options and selected Review, you can either accept the current partition settings (click Next), or modify the setup manually in the partitioning screen.

If you chose to create a custom layout, you must tell the installation program where to install Red Hat Enterprise Linux. This is done by defining mount points for one or more disk partitions in which Red Hat Enterprise Linux is installed.

If you have not yet planned how to set up your partitions, refer to Appendix A, An Introduction to Disk Partitions and Section 16.16.5, “Recommended Partitioning Scheme”. At a bare minimum, you need an appropriately-sized root (/) partition, a /boot/ partition, PReP boot partition, and usually a swap partition appropriate to the amount of RAM you have on the system.

Anaconda can handle the partitioning requirements for a typical installation.

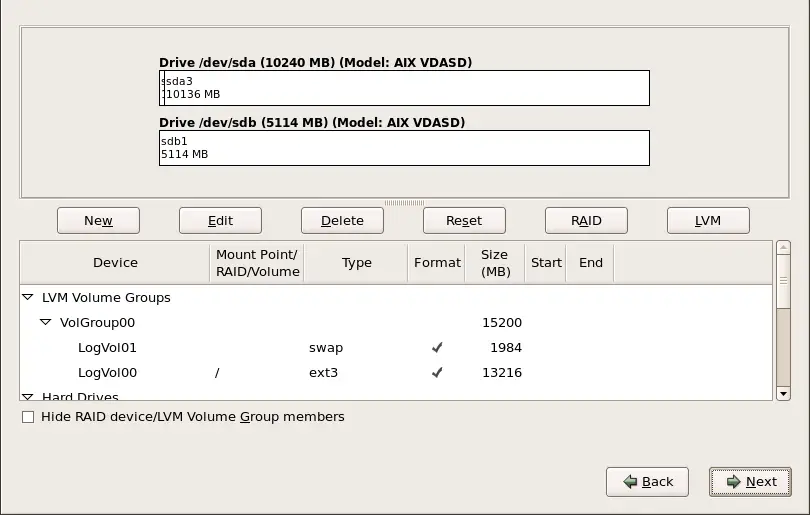

The main partitioning screen for IBM System p.

Figure 16.27. Partitioning on IBM System p

The partitioning screen contains two panes. The top pane contains a graphical representation of the hard drive, logical volume, or RAID device selected in the lower pane.

Above the graphical representation of the device, you can review the name of the drive (such as /dev/sda or LogVol00), its size (in MB), and its model as detected by the installation program.

Using your mouse, click once to highlight a particular field in the graphical display. Double-click to edit an existing partition or to create a partition out of existing free space.

The lower pane contains a list of all drives, logical volumes, and RAID devices to be used during installation, as specified earlier in the installation process — refer to Section 16.11, “ Assign Storage Devices ”

Devices are grouped by type. Click on the small triangles to the left of each device type to view or hide devices of that type.

Anaconda displays several details for each device listed:

Device: the name of the device, logical volume, or partition
Size (MB): the size of the device, logical volume, or partition (in MB)
Mount Point/RAID/Volume: the mount point (location within a file system) on which a partition is to be mounted, or the name of the RAID or logical volume group of which it is a part
Type: the type of partition. If the partition is a standard partition, this field displays the type of file system on the partition (for example, ext4). Otherwise, it indicates that the partition is a physical volume (LVM), or part of a software RAID
Format: A check mark in this column indicates that the partition will be formatted during installation.

Beneath the lower pane are four buttons: Create, Edit, Delete, and Reset.

Select a device or partition by clicking on it in either the graphical representation in the upper pane of in the list in the lower pane, then click one of the four buttons to carry out the following actions:

Create: create a new partition, logical volume, or software RAID
Edit: change an existing new partition, logical volume, or software RAID
Delete: remove a partition, logical volume, or software RAID
Reset: undo all changes made in this screen

16.16.1. Create Storage

The Create Storage dialog allows you to create new storage partitions, logical volumes, and software RAIDs. Anaconda presents options as available or unavailable depending on the storage already present on the system or configured to transfer to the system.

Creating new storage

Figure 16.28. Creating Storage

Options are grouped under Create Partition, Create Software RAID and Create LVM as follows:

Create Partition

Refer to Section 9.14.2, “Adding Partitions” for details of the Add Partition dialog.

Standard Partition — create a standard disk partition (as described in Appendix A, An Introduction to Disk Partitions) in unallocated space.

Create Software RAID

Refer to Section 23.15.3, “ Create Software RAID ” for more detail.

RAID Partition — create a partition in unallocated space to form part of a software RAID device. To form a software RAID device, two or more RAID partitions must be available on the system.
RAID Device — combine two or more RAID partitions into a software RAID device. When you choose this option, you can specify the type of RAID device to create (the RAID level). This option is only available when two or more RAID partitions are available on the system.
RAID Clone — create a mirror of a RAID partition on one storage device on another storage device. This option is only available when at least one RAID partition is available on the system.

Create LVM Logical Volume

Refer to Section 16.16.4, “ Create LVM Logical Volume ” for more detail.

LVM Physical Volume — create a physical volume in unallocated space.
LVM Volume Group — create a volume group from one or more physical volumes. This option is only available when at least one physical volume is available on the system.
LVM Logical Volume — create a logical volume on a volume group. This option is only available when at least one volume group is available on the system.
