17.15. Network Configuration

If you do not have a network device, this screen does not appear during your installation and you should advance to Section 17.16, “Time Zone Configuration”.

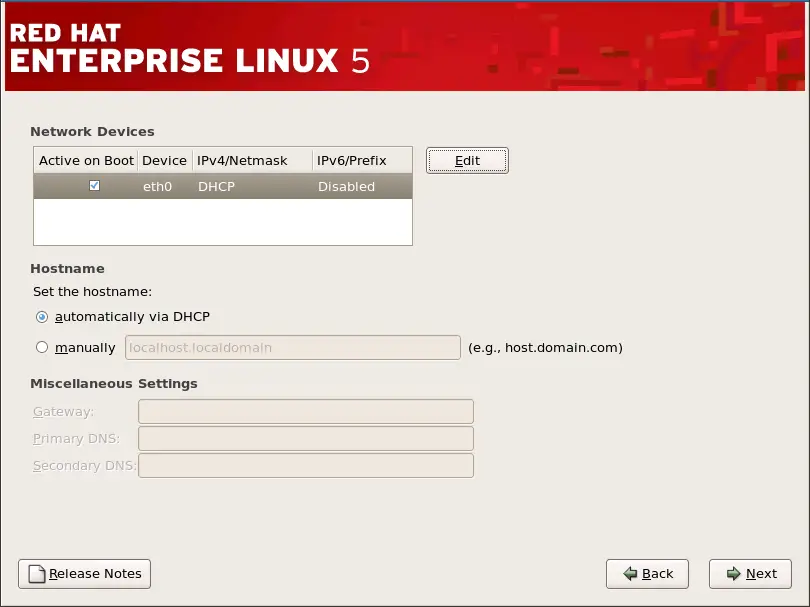

Network configuration screen (x86).

Figure 17.14. Network Configuration

The installation program automatically detects any network devices you have and displays them in the Network Devices list.

Once you have selected a network device, click Edit . From the Edit Interface pop-up screen, you can choose to configure the IP address and Netmask (for IPv4 - Prefix for IPv6) of the device via DHCP (or manually if DHCP is not selected) and you can choose to activate the device at boot time. If you select Activate on boot , your network interface is started when you boot. If you do not have DHCP client access or you are unsure what to provide here, please contact your network administrator.

Note

DHCP should not be chosen for qdio/qeth devices that are configured with OSA layer 3 support. Layer 3 does not provide MAC address or Address Resolution Protocol (ARP) abilities and so can not be used with network services that require them.

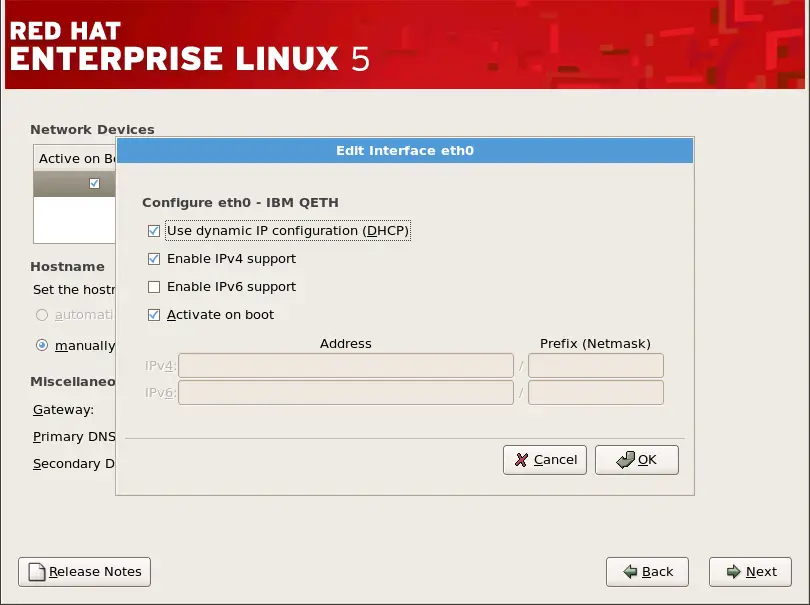

Network configuration screen.

Figure 17.15. Editing a Network Device

Note

Do not use the numbers as seen in this sample configuration. These values will not work for your own network configuration. If you are not sure what values to enter, contact your network administrator for assistance.

If you have a hostname (fully qualified domain name) for the network device, you can choose to have DHCP (Dynamic Host Configuration Protocol) automatically detect it or you can manually enter the hostname in the field provided.

Finally, if you entered the IP and Netmask information manually, you may also enter the Gateway address and the Primary and Secondary DNS addresses.
