Planning for DSL Support Over a PPPoE Tunnel

Some DSL providers require you to set up PPPoE tunneling for your site in order to run PPP over the providers' DSL lines and high-speed digital networks. For an overview of PPPoE, see Support for DSL Users Through PPPoE.

A PPPoE tunnel involves three participants: a consumer, a telephone company, and an ISP. You either configure PPPoE for consumers, such as PPPoE clients at your company or consumers in their homes, or you configure PPPoE on a server at an ISP.

This section contains planning information for running PPPoE on both clients and access servers. The following topics are covered:

For tasks about setting up a PPPoE tunnel, see Chapter 20, Setting Up a PPPoE Tunnel (Tasks).

Before You Set Up a PPPoE Tunnel

Your preconfiguration activities depend on whether you configure the client side or server side of the tunnel. In either instance, you or your organization must contract with a telephone company. The telephone company provides the DSL lines for clients, and some form of bridging and possibly an ATM pipe for access servers. In most contracts, the telephone company assembles its equipment at your site.

Before Configuring a PPPoE Client

PPPoE client implementations usually consist of the following equipment:

  • Personal computer or other system that is used by an individual

  • DSL modem, which is usually installed by the telephone company or Internet access provider

  • (Optional) A hub, if more than one client is involved, as is true for corporate DSL consumers

  • (Optional) A splitter, usually installed by the provider

Many different DSL configurations are possible, which depend on the user or corporation's needs and the services that are offered by the provider.

Table 16-6 Planning for PPPoE Clients

Information

Action

If setting up a home PPPoE client for an individual or yourself, get any setup information that is outside the scope of PPPoE.

Ask the telephone company or ISP for any required setup procedures.

If setting up PPPoE clients at a corporate site, gather the names of users who are being assigned PPPoE client systems. If you configure remote PPPoE clients, you might be responsible for giving users information about adding home DSL equipment.

Ask management at your company for a list of authorized users.

Find out which interfaces are available on the PPPoE client.

Run the ifconfig -a command on each machine for interface names.

(Optional) Obtain the password for the PPPoE client.

Ask users for their preferred passwords. Or, assign passwords to the users. Note that this password is used for link authentication, not for UNIX login.

Before Configuring a PPPoE Server

Planning for a PPPoE access server involves working with the telephone company that provides your connection to its data service network. The telephone company installs its lines, often ATM pipes, at your site, and provides some sort of bridging into your access server. You need to configure the Ethernet interfaces that access the services that your company provides. For example, you need to configure interfaces for Internet access, as well as the Ethernet interfaces from the telephone company's bridge.

Table 16-7 Planning for a PPPoE Access Server

Information

Action

Interfaces that are used for lines from data service network

Run the ifconfig -a command to identify interfaces.

Types of services to provide from the PPPoE server

Ask management and network planners for their requirements and suggestions.

(Optional) Types of services to provide to the consumers

Ask management and network planners for their requirements and suggestions.

(Optional) Host names and passwords for remote clients

Ask network planners and other individuals at your site who are responsible for contract negotiations. The host names and passwords are used for PAP or CHAP authentication, not for UNIX login.

Example of a Configuration for a PPPoE Tunnel

This section contains an example of a PPPoE tunnel, which is used as an illustration for the tasks in Chapter 20, Setting Up a PPPoE Tunnel (Tasks). Though the illustration shows all participants in the tunnel, you only administer one end, either the client side or server side.

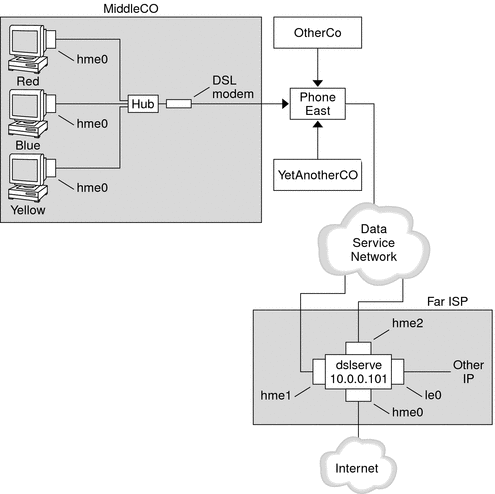

Figure 16-5 Example of a PPPoE Tunnel
The graphic shows an example of a PPPoE tunnel to be used in tasks, as explained in the next context.

In the sample, MiddleCo wants to provide its employees with high-speed Internet access. MiddleCo buys a DSL package from Phone East, which, in turn, contracts with service provider Far ISP. Far ISP offers Internet and other IP services to customers who buy DSL from Phone East.

Example of a PPPoE Client Configuration

MiddleCo buys a package from Phone East that provides one DSL line for the site. The package includes a dedicated, authenticated connection to the ISP for MiddleCo's PPPoE clients. The system administrator cables the prospective PPPoE clients to a hub. Technicians from Phone East cable the hub to their DSL equipment.

Example of a PPPoE Server Configuration

To implement the business arrangement FarISP has with Phone East, the system administrator at FarISP configures the access server dslserve. This server has the following four interfaces:

  • eri0 – Primary network interface that connects to the local network

  • hme0 – Interface through which FarISP provides Internet service for its customers

  • hme1 – Interface contracted by MiddleCo for authenticated PPPoE tunnels

  • hme2 – Interface contracted by other customers for their PPPoE tunnels

Where to Get More Information About PPPoE

Choose from the following:
