Graphical Tools


Debian Packages: gnome-system-tools

The gnome-system-tools package contains a graphical interface (network-admin) to set up your network. The application is available from the standard Gnome menu as Applications-->System Tools-->Networking. You will be asked for the root password to effect changes to networking, as in Figure 66.1.

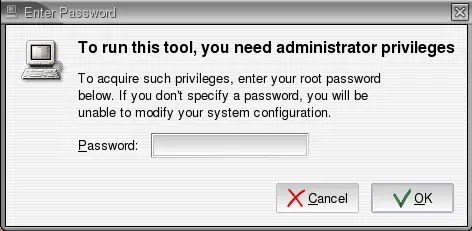

Figure 66.1: Dialogue requesting root password for network administration.
Image network-admin-password

You will then see the interface that will allow you to set up your networking. With a laptop, for example, with regularly changing network configurations you can create a number of appropriate Network Profiles, with one called home chosen in Figure 66.2. To establish a connection you can click on the unselected button for the appropriate network device in the Status column of the Connections tab (after choosing the appropriate Network Profile).

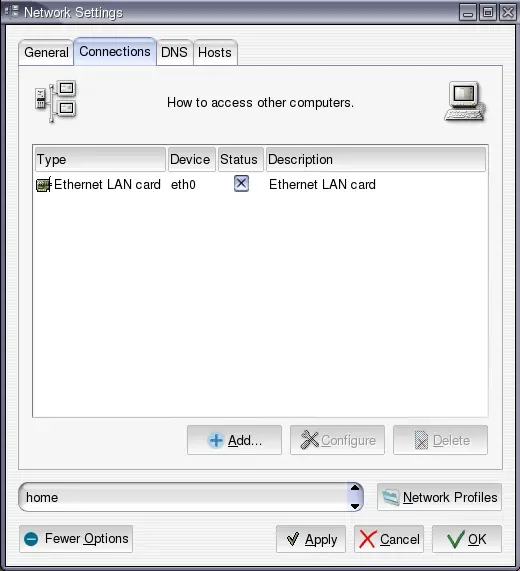

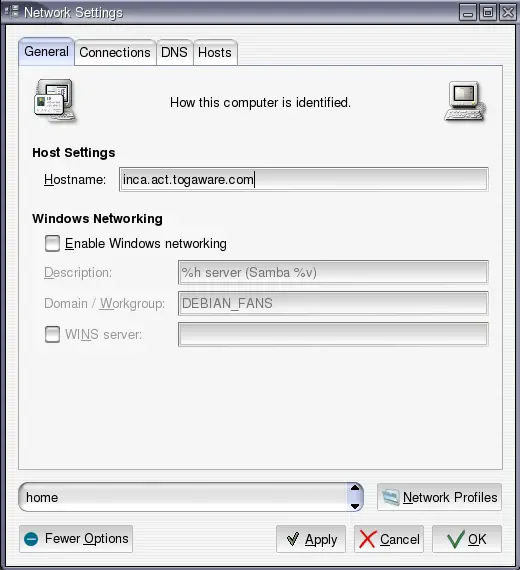

Figure 66.2: Configuration of networks using the Gnome network administration tool.
Image network-admin-general    Image network-admin-connections
