3.1.3.1. Visual

For convenience, the Linux file system is usually thought of in a tree structure. On a standard Linux system you will find the layout generally follows the scheme presented below.

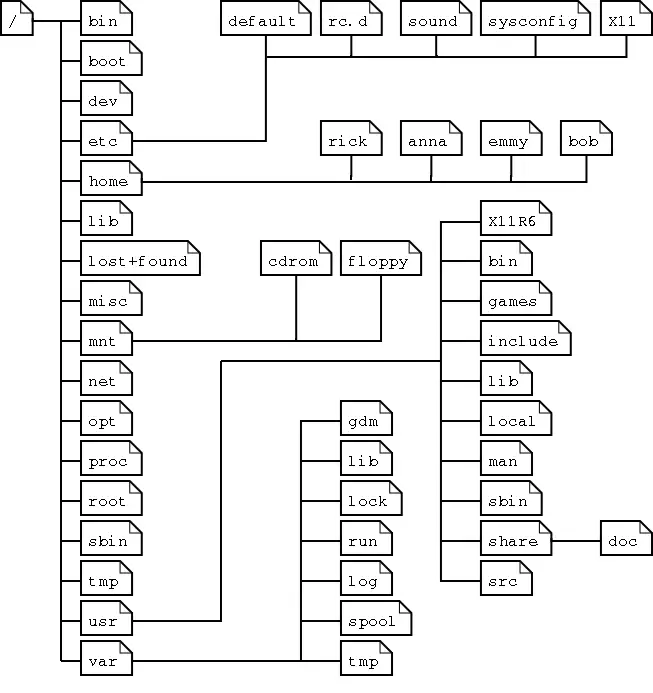

Figure 3-1. Linux file system layout

This is a layout from a RedHat system. Depending on the system admin, the operating system and the mission of the UNIX machine, the structure may vary, and directories may be left out or added at will. The names are not even required; they are only a convention.

The tree of the file system starts at the trunk or slash, indicated by a forward slash (/). This directory, containing all underlying directories and files, is also called the root directory or "the root" of the file system.

Directories that are only one level below the root directory are often preceded by a slash, to indicate their position and prevent confusion with other directories that could have the same name. When starting with a new system, it is always a good idea to take a look in the root directory. Let's see what you could run into:

emmy:~> cd /
emmy:/> ls
bin/   dev/  home/    lib/         misc/  opt/     root/  tmp/  var/
boot/  etc/  initrd/  lost+found/  mnt/   proc/    sbin/  usr/

Table 3-2. Subdirectories of the root directory

Directory	Content
/bin	Common programs, shared by the system, the system administrator and the users.
/boot	The startup files and the kernel, `vmlinuz`. In some recent distributions also `grub` data. Grub is the GRand Unified Boot loader and is an attempt to get rid of the many different boot-loaders we know today.
/dev	Contains references to all the CPU peripheral hardware, which are represented as files with special properties.
/etc	Most important system configuration files are in `/etc`, this directory contains data similar to those in the Control Panel in Windows
/home	Home directories of the common users.
/initrd	(on some distributions) Information for booting. Do not remove!
/lib	Library files, includes files for all kinds of programs needed by the system and the users.
/lost+found	Every partition has a `lost+found` in its upper directory. Files that were saved during failures are here.
/misc	For miscellaneous purposes.
/mnt	Standard mount point for external file systems, e.g. a CD-ROM or a digital camera.
/net	Standard mount point for entire remote file systems
/opt	Typically contains extra and third party software.
/proc	A virtual file system containing information about system resources. More information about the meaning of the files in `proc` is obtained by entering the command man `proc` in a terminal window. The file `proc.txt` discusses the virtual file system in detail.
/root	The administrative user's home directory. Mind the difference between /, the root directory and /root, the home directory of the root user.
/sbin	Programs for use by the system and the system administrator.
/tmp	Temporary space for use by the system, cleaned upon reboot, so don't use this for saving any work!
/usr	Programs, libraries, documentation etc. for all user-related programs.
/var	Storage for all variable files and temporary files created by users, such as log files, the mail queue, the print spooler area, space for temporary storage of files downloaded from the Internet, or to keep an image of a CD before burning it.

How can you find out which partition a directory is on? Using the df command with a dot (.) as an option shows the partition the current directory belongs to, and informs about the amount of space used on this partition:

sandra:/lib> df -h .
Filesystem            Size  Used Avail Use% Mounted on
/dev/hda7             980M  163M  767M  18% /

As a general rule, every directory under the root directory is on the root partition, unless it has a separate entry in the full listing from df (or df -h with no other options).
