In the Virtual Machine Manager main window, highlight the virtual machine that you want to view.

[D]

Figure 18.19. Selecting Virtual Machine to Display

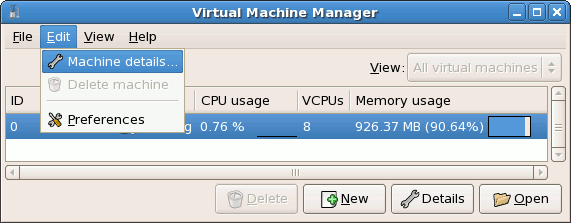

From the Virtual Machine Manager Edit menu, select Machine Details (or click the Details button on the bottom of the Virtual Machine Manager main window).

[D]

Figure 18.20. Displaying Virtual Machine Details Menu

The Virtual Machine Details Overview window appears. This window summarizes CPU and memory usage for the domain(s) you specified.

[D]

Figure 18.21. Displaying Virtual Machine Details Overview

On the Virtual Machine Details window, click the Hardware tab.

The Virtual Machine Details Hardware window appears.

[D]

Figure 18.22. Displaying Virtual Machine Details Hardware

On the Hardware tab, click on Processor to view or change the current processor memory allocation.

[D]

Figure 18.23. Displaying Processor Allocation

On the Hardware tab, click on Memory to view or change the current RAM memory allocation.

[D]

Figure 18.24. Displaying Memory Allocation

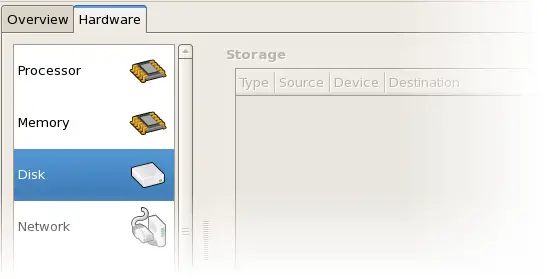

On theHardware tab, click on Disk to view or change the current hard disk configuration.

[D]

Figure 18.25. Displaying Disk Configuration

On the Hardware tab, click on Network to view or change the current network configuration.

[D]

Figure 18.26. Displaying Network Configuration
