ICMP packets are far from a stateful stream, since
they are only used for controlling and should never establish any connections.
There are four ICMP types that will generate return
packets however, and these have 2 different states. These
ICMP messages can take the NEW and
ESTABLISHED states. The ICMP types
we are talking about are Echo request and
reply, Timestamp request and
reply, Information request
and reply and finally Address mask
request and reply. Out of these, the
timestamp request and information
request are obsolete and could most probably just be dropped.
However, the Echo messages are used in several setups
such as pinging hosts. Address mask requests are not

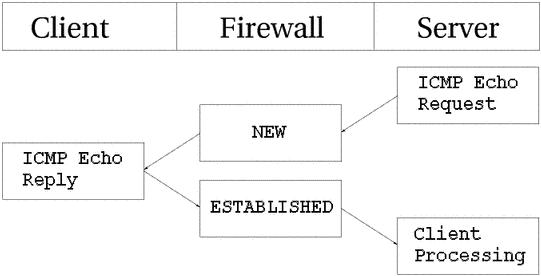

used often, but could be useful at times and worth allowing. To get
an idea of how this could look, have a look at the following image.
As you can see in the above picture, the host sends an echo
request to the target, which is considered as
NEW by the firewall. The target then responds with a
echo reply which the firewall considers as state
ESTABLISHED. When the first echo request has been seen, the
following state entry goes into the ip_conntrack.
icmp 1 25 src=192.168.1.6 dst=192.168.1.10 type=8 code=0 \
id=33029 [UNREPLIED] src=192.168.1.10 dst=192.168.1.6 \
type=0 code=0 id=33029 use=1
This entry looks a little bit different from the standard states for
TCP and UDP as you can see.
The protocol is there, and the timeout, as well as source and destination
addresses. The problem comes after that however. We now have 3 new fields
called type,
code and id.
They are not special in any way, the type
field contains the ICMP type and the
code field contains the
ICMP code. These are all available in ICMP types appendix. The final
id field, contains the ICMP
ID. Each ICMP packet gets an ID set to
it when it is sent, and when the receiver gets the
ICMP message, it sets the same
ID within the new ICMP
message so that the sender will recognize the reply and will be able to
connect it with the correct ICMP request.
The next field, we once again recognize as the
[UNREPLIED] flag, which we have seen before.
Just as before, this flag tells us that we are currently looking at a
connection tracking entry that has seen only traffic in one direction.
Finally, we see the reply expectation for the reply
ICMP packet, which is the inversion of the original
source and destination IP addresses. As for the type and code, these are
changed to the correct values for the return packet, so an echo request is
changed to echo reply and so on. The ICMP ID is
preserved from the request packet.
The reply packet is considered as being ESTABLISHED, as we
have already explained. However, we can know for sure that after the
ICMP reply, there will be absolutely no more legal
traffic in the same connection. For this reason, the connection tracking entry
is destroyed once the reply has traveled all the way through the Netfilter
structure.
In each of the above cases, the request is considered as
NEW, while the reply is considered as
ESTABLISHED. Let's consider this more closely. When the
firewall sees a request packet, it considers it as NEW.
When the host sends a reply packet to the request it is considered
ESTABLISHED.
 | Note that this means that the reply packet must match the criterion given by
the connection tracking entry to be considered as established, just as with
all other traffic types.
|
ICMP requests has a default timeout of 30 seconds, which you can change in the
/proc/sys/net/ipv4/netfilter/ip_ct_icmp_timeout entry.
This should in general be a good timeout value, since it will be able to catch
most packets in transit.
Another hugely important part of ICMP is the fact
that it is used to tell the hosts what happened to specific
UDP and TCP connections or
connection attempts. For this simple reason, ICMP replies will very often be
recognized as RELATED to original connections or
connection attempts. A simple example would be the
ICMP Host unreachable or ICMP Network
unreachable. These should always be spawned back to our host if
it attempts an unsuccessful connection to some other host, but the network or
host in question could be down, and hence the last router trying to reach the
site in question will reply with an ICMP message
telling us about it. In this case, the ICMP reply is

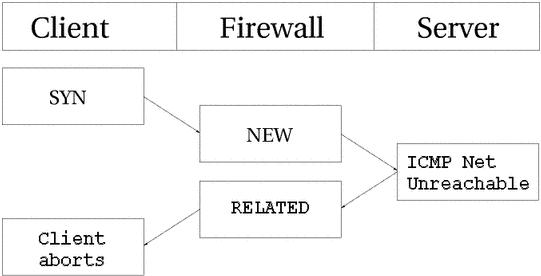

considered as a RELATED packet. The following picture
should explain how it would look.
In the above example, we send out a SYN packet to
a specific address. This is considered as a NEW connection
by the firewall. However, the network the packet is trying to reach is
unreachable, so a router returns a network unreachable
ICMP error to us. The connection tracking code can
recognize this packet as RELATED. thanks to the already
added tracking entry, so the ICMP reply is correctly
sent to the client which will then hopefully abort. Meanwhile, the firewall
has destroyed the connection tracking entry since it knows this was an error
message.
The same behavior as above is experienced with UDP
connections if they run into any problem like the above. All
ICMP messages sent in reply to
UDP connections are considered as

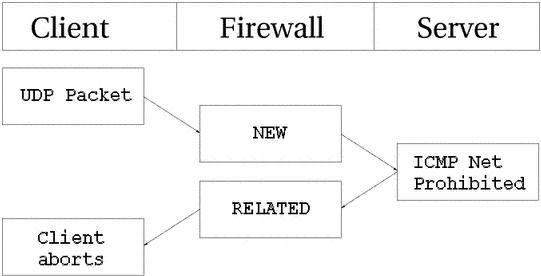

RELATED. Consider the following image.
This time an UDP packet is sent to the host. This
UDP connection is considered as
NEW. However, the network is administratively prohibited by
some firewall or router on the way over. Hence, our firewall receives a
ICMP Network Prohibited in return. The firewall knows
that this ICMP error message is related to the
already opened UDP connection and sends it as a
RELATED packet to the client. At this point, the firewall
destroys the connection tracking entry, and the client receives the
ICMP message and should hopefully abort.
