1.6. Load Balancer Add-On — A Block Diagram

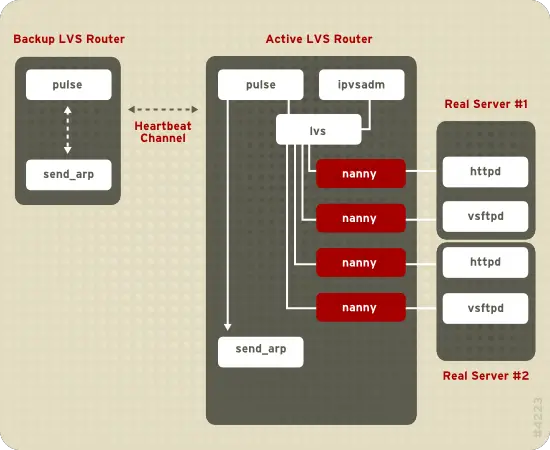

LVS routers use a collection of programs to monitor cluster members and cluster services. Figure 1.5, “Load Balancer Add-On Components” illustrates how these various programs on both the active and backup LVS routers work together to manage the cluster.
Load Balancer Add-On Components
Load Balancer Add-On Components
Figure 1.5. Load Balancer Add-On Components

The pulse daemon runs on both the active and passive LVS routers. On the backup router, pulse sends a heartbeat to the public interface of the active router to make sure the active router is still properly functioning. On the active router, pulse starts the lvs daemon and responds to heartbeat queries from the backup LVS router.
Once started, the lvs daemon calls the ipvsadm utility to configure and maintain the IPVS routing table in the kernel and starts a nanny process for each configured virtual server on each real server. Each nanny process checks the state of one configured service on one real server, and tells the lvs daemon if the service on that real server is malfunctioning. If a malfunction is detected, the lvs daemon instructs ipvsadm to remove that real server from the IPVS routing table.
If the backup router does not receive a response from the active router, it initiates failover by calling send_arp to reassign all virtual IP addresses to the NIC hardware addresses (MAC address) of the backup node, sends a command to the active router via both the public and private network interfaces to shut down the lvs daemon on the active router, and starts the lvs daemon on the backup node to accept requests for the configured virtual servers.

1.6.1. Load Balancer Add-On Components

Section 1.6.1.1, “pulse shows a detailed list of each software component in an LVS router.

1.6.1.1. pulse

This is the controlling process which starts all other daemons related to LVS routers. At boot time, the daemon is started by the /etc/rc.d/init.d/pulse script. It then reads the configuration file /etc/sysconfig/ha/lvs.cf. On the active router, pulse starts the LVS daemon. On the backup router, pulse determines the health of the active router by executing a simple heartbeat at a user-configurable interval. If the active router fails to respond after a user-configurable interval, it initiates failover. During failover, pulse on the backup router instructs the pulse daemon on the active router to shut down all LVS services, starts the send_arp program to reassign the floating IP addresses to the backup router's MAC address, and starts the lvs daemon.

1.6.1.2. lvs

The lvs daemon runs on the active LVS router once called by pulse. It reads the configuration file /etc/sysconfig/ha/lvs.cf, calls the ipvsadm utility to build and maintain the IPVS routing table, and assigns a nanny process for each configured Load Balancer Add-On service. If nanny reports a real server is down, lvs instructs the ipvsadm utility to remove the real server from the IPVS routing table.

1.6.1.3. ipvsadm

This service updates the IPVS routing table in the kernel. The lvs daemon sets up and administers Load Balancer Add-On by calling ipvsadm to add, change, or delete entries in the IPVS routing table.

1.6.1.4. nanny

The nanny monitoring daemon runs on the active LVS router. Through this daemon, the active router determines the health of each real server and, optionally, monitors its workload. A separate process runs for each service defined on each real server.

1.6.1.5. /etc/sysconfig/ha/lvs.cf

This is the Load Balancer Add-On configuration file. Directly or indirectly, all daemons get their configuration information from this file.

1.6.1.6. Piranha Configuration Tool

This is the Web-based tool for monitoring, configuring, and administering Load Balancer Add-On. This is the default tool to maintain the /etc/sysconfig/ha/lvs.cf Load Balancer Add-On configuration file.

1.6.1.7. send_arp

This program sends out ARP broadcasts when the floating IP address changes from one node to another during failover.
Chapter 2, Initial Load Balancer Add-On Configuration reviews important post-installation configuration steps you should take before configuring Red Hat Enterprise Linux to be an LVS router.
