3.2.6. Extending a Volume Group

In this example, the objective was to extend the new volume group to include an uninitialized entity (partition). This was to increase the size or number of extents for the volume group. To extend the volume group, click on the Extend Volume Group button. This will display the 'Extend Volume Group' window as illustrated below. On the 'Extend Volume Group' window, you can select disk entities (partitions) to add to the volume group. Please ensure that you check the contents of any 'Uninitialized Disk Entities' (partitions) to avoid deleting any critical data (see Figure 3.15, “Uninitialized hard disk”). In the example, the disk entity (partition) /dev/hda6 was selected as illustrated below.

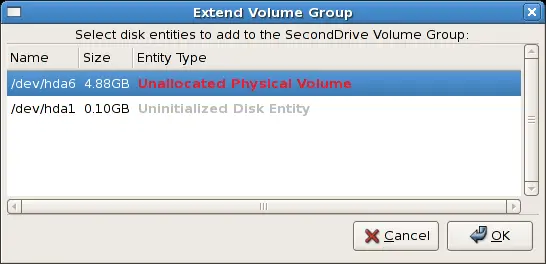

Select disk entities
Select disk entities
Figure 3.19. Select disk entities

Once added, the new volume will be added as 'Unused Space' in the volume group. The figure below illustrates the logical and physical view of the volume group after it was extended.

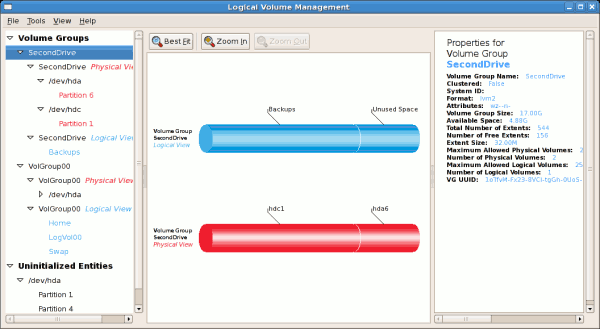

Logical and physical view of an extended volume group
Logical and physical view of an extended volume group
Figure 3.20. Logical and physical view of an extended volume group
