10.55.  Offset

Revision History
Revision $Revision$ 2006-08-16 scb

The Offset command shifts the contents of the active layer. Anything shifted outside the layer boundary is cropped. This command displays a dialog which allows you to specify how much to shift the layer and how to fill the space that is left empty by shifting it.

10.55.1.  Activating the Command

  • You can access this command from the image menubar through Layer->Transform->Offset,

  • or by using the keyboard shortcut Shift-Ctrl-O.

10.55.2.  Description of the “Offset” dialog

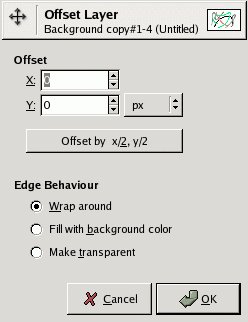

Figure 10.118.  The “Offset” dialog

The Offset dialog
Offset
X; Y

With these two values, you specify how far the contents of the layer should be shifted in the horizontal (X) and vertical (Y) directions. You can enter the offsets in the text boxes. Positive values move the layer to the right and downward. The default unit is pixels, but you can choose a different unit of measurement with the drop-down menu. A unit of “%” is sometimes useful.

Offset by x/2, y/2

With this button, you can automatically set the X and Y offsets so that the contents are shifted by exactly half the width and half the height of the image.

Edge Behavior

You can specify one of three ways to treat the areas left empty when the contents of the layer are shifted:

  • Wrap around: The empty space on one side of the layer is filled with the part of the layer which is shifted out of the other side, so none of the content is lost.

  • Fill with background color: The empty space is filled with the background color, which is shown in the Color Area of the Toolbox.

  • Make transparent: The empty space is made transparent. If the layer does not have an alpha channel, this choice is not available (grayed out).
