10.29.  Add Layer Mask

Revision History
Revision $Revision$ 2006-08-16 scb

The Add Layer Mask command adds a layer mask to the active layer. It displays a dialog in which you can set the initial properties of the mask. If the layer already has a layer mask, or if it cannot have one because it does not have an alpha channel, the menu entry is insensitive and grayed out.

A layer mask lets you define which parts of the layer are opaque, semi-transparent or transparent. See the Layer Mask section for more information.

10.29.1.  Activating the Command

  • You can access this command from the image menubar through Layer->Mask->Add Layer Mask

  • or from the pop-up menu you get by right-clicking on the active layer in the Layers Dialog.

10.29.2.  Description of the “Add Layer Mask” Dialog

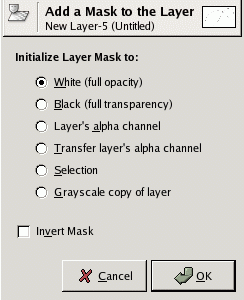

Figure 10.105.  The “Add Layer Mask” dialog

The Add Layer Mask dialog
Initialize Layer Mask to

This dialog allows you six choices for the initial contents of the layer mask:

White (full opacity)

With this option, the layer mask will make all of the layer fully opaque. That means that you will not notice any difference in the appearance of the layer until you paint on the layer mask.

Black (full transparency)

With this option, the layer mask will make all of the layer fully transparent. This is represented in the image by a checkered pattern on which you will need to paint to make any part of the layer visible.

Layer's alpha channel

With this option, the contents of the alpha channel are used to fill the layer mask. The alpha channel itself is not altered, so the transparency of partially visible areas is increased.

Transfer layer's alpha channel

This option does the same thing as the previous option, except that it also resets the layer's alpha channel to full opacity. The effect is to transfer the transparency information from the alpha channel to the layer mask, leaving the layer with the same appearance as before. The only difference is that the visibility of the layer is now determined by the layer mask and not by the alpha channel.

Selection

This option converts the current selection into a layer mask, so that selected areas are opaque, and unselected areas are transparent. If any areas are partially selected, you can click on the QuickMask button to help you predict what the effects will be.

Grayscale copy of layer

This option converts the layer itself into a layer mask. It is particularly useful when you plan to add new contents to the layer afterwards.

Invert Mask

If you check the Invert Mask box at the bottom of the dialog, the resulting mask is inverted, so that transparent areas become opaque and vice versa.

When you click on the OK button, a thumbnail of the layer mask appears to the right of the thumbnail of the layer in the Layers Dialog.
