2.3. “Paths” Dialog

Please see Section 5, “ Paths if you don't know what a path is.

Figure 14.12. The “Paths” dialog

The Paths dialog

The “Paths” dialog is used to manage paths, allowing you to create or delete them, save them, convert them to and from selections, etc.

2.3.1. Activating the dialog

The “Paths” dialog is a dockable dialog; see the section Section 2.3, “Dialogs and Docking” for help on manipulating it.

You can access it:

  • from the image menu: WindowsDockable DialogsPaths.

  • from the Tab menu in any dockable dialog by clicking on and selecting Add TabPaths,

In the Windows menu, there is a list of detached windows which exists only if at least one dialog remains open. In this case, you can raise the “Paths” dialog from the image-menu: WindowsPaths.

2.3.2. Using the Paths dialog

Each path belongs to one image: paths are components of images just like layers. The Paths dialog shows you a list of all paths belonging to the currently active image: switching images causes the dialog to show a different list of paths. If the Paths dialog is embedded in a “Layers, Channels, and Paths” dock, you can see the name of the active image in the Image Menu at the top of the dock. (Otherwise, you can add an Image Menu to the dock by choosing “Show Image Menu” from the Tab menu.)

If you are familiar with the Layers dialog, you have a head start, because the Paths dialog is in several ways similar. It shows a list of all paths that exist in the image, with four items for each path:

Path visibility

An “open eye” icon if the path is visible, or a blank space if it is not. "Visible" means that a trace of the path is drawn on the image display. The path is not actually shown in the image pixel data unless it has been stroked or otherwise rendered. Clicking in the eye-symbol-space toggles the visibility of the path.

Chain paths

A “chain” symbol is shown to the right of the eye-symbol-space if the path is transform-locked, or a blank space if it is not. “Transform-locked” means that it forms part of a set of elements (layers, channels, etc) that are all affected in the same way by transformations (scaling, rotation, etc) applied to any one of them. Clicking in the chain-symbol-space toggles the transform-lock status of the path.

Preview image

A small preview-icon showing a sketch of the path. If you click on the icon and drag it into an image, this will create a copy of the path in that image.

Path Name

The name of the path, which must be unique within the image. Double-clicking on the name will allow you to edit it. If the name you create already exists, a number will be appended (e.g., "#1") to make it unique.

If the list is non-empty, at any given moment one of the members is the image's active path, which will be the subject of any operations you perform using the dialog menu or the buttons at the bottom: the active path is shown highlighted in the list. Clicking on any of the entries will make it the active path.

Right-clicking on any entry in the list brings up the Paths Menu. You can also access the Paths Menu from the dialog Tab menu.

2.3.3. Buttons

The buttons at the bottom of the Paths dialog all correspond to entries in the Paths menu (accessed by right-clicking on a path list entry), but some of them have extra options obtainable by holding down modifier keys while you press the button.

New Path

See New Path. Holding down the Shift key brings up a dialog that allows you to assign a name to the new (empty) path.

Raise Path

See Raise Path.

Lower Path

See Lower Path.

Duplicate Path

See Duplicate Path.

Path to Selection

Converts the path into a selection; see Path to Selection for a full explanation. You can use modifier keys to set the way the new selection interacts with the existing selection:

Modifiers Action
None Replace existing selection
Shift Add to selection
Ctrl Subtract from selection
Shift+Ctrl Intersect with selection.
Selection to Path

Holding down the Shift key brings up the Advanced Options dialog, which probably is only useful to GIMP developers.

Stroke Path

See Stroke Path.

Delete Path

Delete Path deletes the current selected path.

2.3.4. The “Paths” context menu

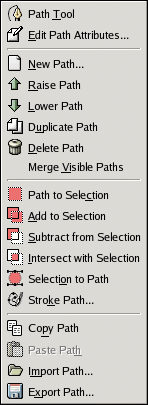

Figure 14.13. The “Paths” context menu

The Paths context menu

The Paths menu can be brought up by right-clicking on a path entry in the list in the Paths dialog, or by choosing the top entry ("Paths Menu") from the Paths dialog Tab menu. This menu gives you access to most of the operations that affect paths.

Path Tool

Path Tool is an alternative way to activate the Path tool, used for creating and manipulating paths. It can also be activated from the Toolbox, or by using the keyboard shortcut B (for Bézier).

Edit Path Attributes

Edit Path Attributes brings up a small dialog that allows you to change the name of the path. You can also do this by double-clicking on the name in the list in the Paths dialog.

New Path

New Pathcreates a new path, adds it to the list in the Paths dialog, and makes it the active path for the image. It brings up a dialog that allows you to give a name to the path. The new path is created with no anchor points, so you will need to use the Path tool to give it some before you can use it for anything.

Raise Path

Raise Path moves the path one slot higher in the list in the Paths dialog. The position of a path in the list has no functional significance, so this is simply a convenience to help you keep things organized.

Lower Path

Lower Pathmoves the path one slot lower in the list in the Paths dialog. The position of a path in the list has no functional significance, so this is simply a convenience to help you keep things organized.

Duplicate Path

"Duplicate Path" creates a copy of the active path, assigns it a unique name, adds it to the list in the Paths dialog, and makes it the active path for the image. The copy will be visible only if the original path was visible.

Delete Path

Delete Path deletes the current selected path.

Merge Visible Paths

Merge Visible Paths takes all the paths in the image that are visible (that is, all that show “open eye” symbols in the Paths dialog), and turns them into components of a single path. This may be convenient if you want to stroke them all in the same way, etc.

Path to Selection; Add to Selection; Subtract from Selection; Intersect with Selection

These commands all convert the active path into a selection, and then combine it with the existing selection in the specified ways. ("Path to Selection" discards the existing selection and replaces it with one formed from the path.) If necessary, any unclosed components of the path are closed by connecting the last anchor point to the first anchor point with a straight line. The "marching ants" for the resulting selection should closely follow the path, but don't expect the correspondence to be perfect.

Selection to Path

This operation can be accessed in several ways:

  • From an image menubar, as SelectTo Path

  • From the Paths dialog menu, as Selection to Path.

  • From the Selection to Path button at the bottom of the Paths dialog.

  • From the Selection to Path button in the Tool Options for the Path tool.

Selection to Path creates a new path from the image's selection. In most cases the resulting path will closely follow the "marching ants" of the selection, but the correspondence will not usually be perfect.

Converting a two-dimensional selection mask into a one-dimensional path involves some rather tricky algorithms: you can alter the way it is done using the Advanced Options, which are accessed by holding down the Shift key while pressing the Selection to Path button at the bottom of the Paths dialog. This brings up the Advanced Options dialog, which allows you to set 20 different options and variables, all with cryptic names. The Advanced Options are really intended for developers only, and help with them goes beyond the scope of this documentation. Generally speaking, Selection to Path will do what you expect it to, and you don't need to worry about how it is done (unless you want to).

Stroke Path

This operation can be accessed in several ways:

  • From an image menubar, as EditStroke Path

  • From the Paths dialog menu, as Stroke Path.

  • From the Stroke Path button at the bottom of the Paths dialog.

  • From the Stroke Path button in the Tool Options for the Path tool.

Stroke Path” renders the active path on the active layer of the image, permitting a wide variety of line styles and stroking options. See the section on Stroking for more information.

Copy Path

Copy Path copies the active path to the Paths Clipboard, enabling you to paste it into a different image.

[Tip] Tip

You can also copy and paste a path by dragging its icon from the Paths dialog into the target image's display.

[Note] Note

When you copy a path to an image, it is not visible. You have to make it visible in the Path dialog.

Paste Path

Paste Path creates a new path from the contents of the Path Clipboard, adds it to the list in the Paths dialog, and makes it the active path for the image. If no path has previously been copied into the clipboard, the menu entry will be insensitive.

Import Path

"Import Path" creates a new path from an SVG file: it pops up a file chooser dialog that allows you to navigate to the file. See the Paths section for information on SVG files and how they relate to GIMP paths.

Export Path

Export Path allows you to save a path to a file: it pops up a file save dialog that allows you to specify the file name and location. You can later add this path to any GIMP image using the Import Path command. The format used for saving paths is SVG: this means that vector-graphics programs such as Sodipodi or Inkscape will also be able to import the paths you save. See the Paths section for more information on SVG files and how they relate to GIMP paths.
