Eclipse Platform Plug-in Development Environment Guide
Previous Page Home Next Page

Step Section

About This Section

This Definition section allows you to edit the properties of a step. It is activated by selecting a step node in the Content section.

Selection of a step without sub-steps:

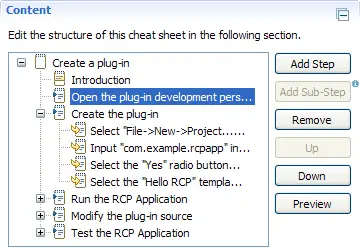

Step Content Section

Selection of a step with sub-steps:

Step Content Section

Section Fields

This section contains the following fields:

Label Type Name Description Required
Title Text Step Title Edit this field to specify the title of the step. Yes
Body Text Step Body Edit this field to specify the instructional content of the step.

The text may be formatted using bold and break tags: To bold text, enclose with HTML-style bold tags: <b></b>. To break text, use HTML-style break tags: <br/>.
Yes
This step is optional Checkbox Optional Step Check this field to make the completion of this step in the Cheat Sheet view optional.

A non-optional step includes a Click when complete action in the Cheat Sheet view to complete the step. An optional step includes a Click to skip action in the Cheat Sheet view to skip the step.

Note: A step that contains sub-steps cannot be made optional.
No

Properties of a step without sub-steps:

Step Definition Section

Properties of a step with sub-steps:

Step Definition Section

Representation

A step without sub-steps is represented in the Cheat Sheet view as follows:

Step Cheat Sheet View

A step with sub-steps is represented in the Cheat Sheet view as follows:

Step Cheat Sheet View
